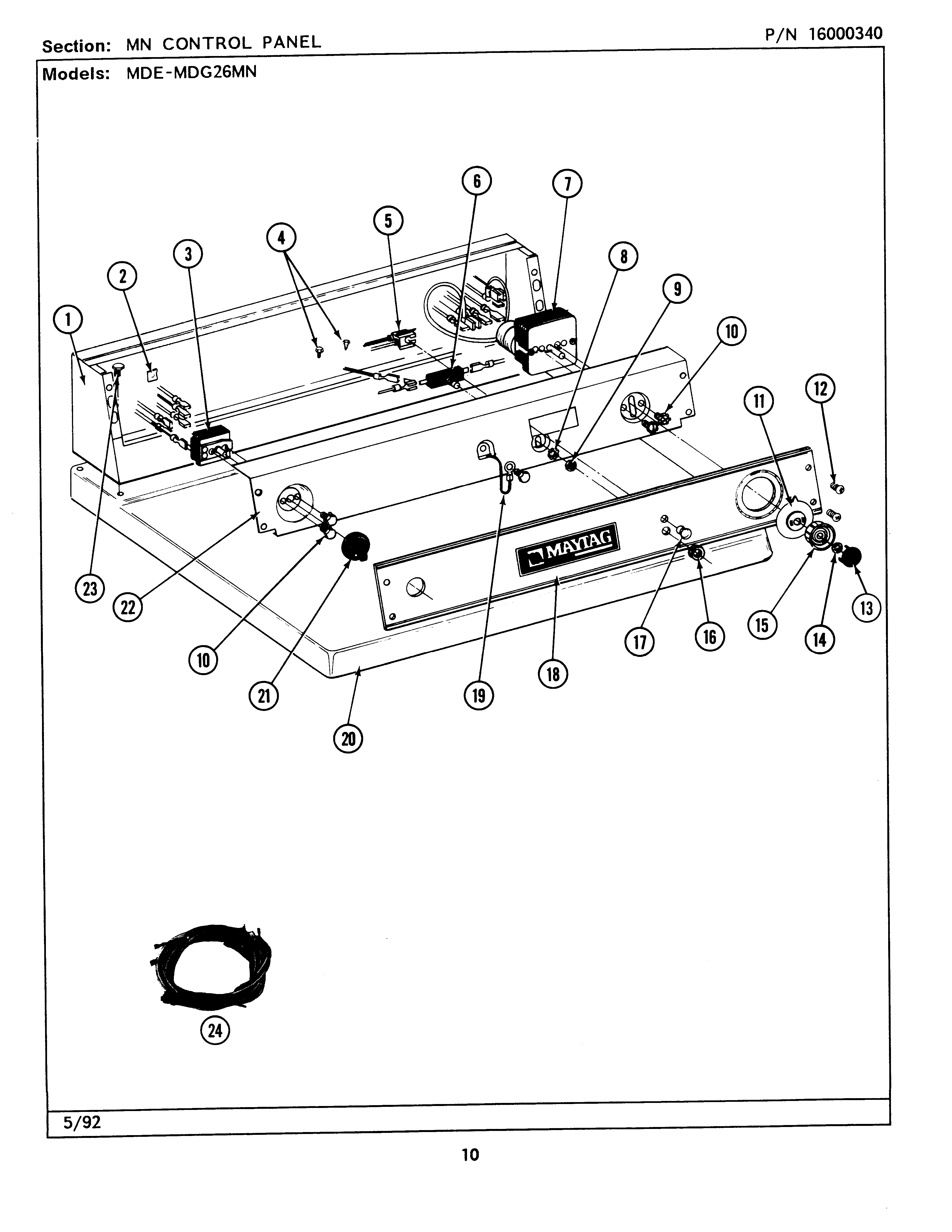

MDG26MNAGL 03 – CONTROL PANEL (MN)

MDG26MNAGL 03 – CONTROL PANEL (MN)

Written by

in

MDG26MNAGL 03 – CONTROL PANEL (MN)

Products

PositionProduct
002MAY 215003
003WPW10327105 Whirlpool Cycle Switch
004WP90767 Whirlpool Screw
004MAY Y314322
006WPW10149462 Whirlpool Push-to-Start Switch
007MAY Y304585
007MAY Y305758
008WPW10139799 Whirlpool Washer
009MAY Y312706
010WP488234 Whirlpool Air Conditioner Screw
011MAY 314725
012WP1163283 Whirlpool Air Conditioner Screw
013WPW10133501 Whirlpool Cap
014W10155650 Whirlpool Nut
016MAY Y312702
017WP215564 Whirlpool Indicator Lens
018CONTROL PANEL COMMERCIAL DRYER
019WP489399 Whirlpool Refrigerator Screw
019MAY 205810
020TOP COVER ASSY. (WHT)
021MAY 306938
023MAY 212276
024DOWEL PIN FOR HANDLE
024MAY 308510
