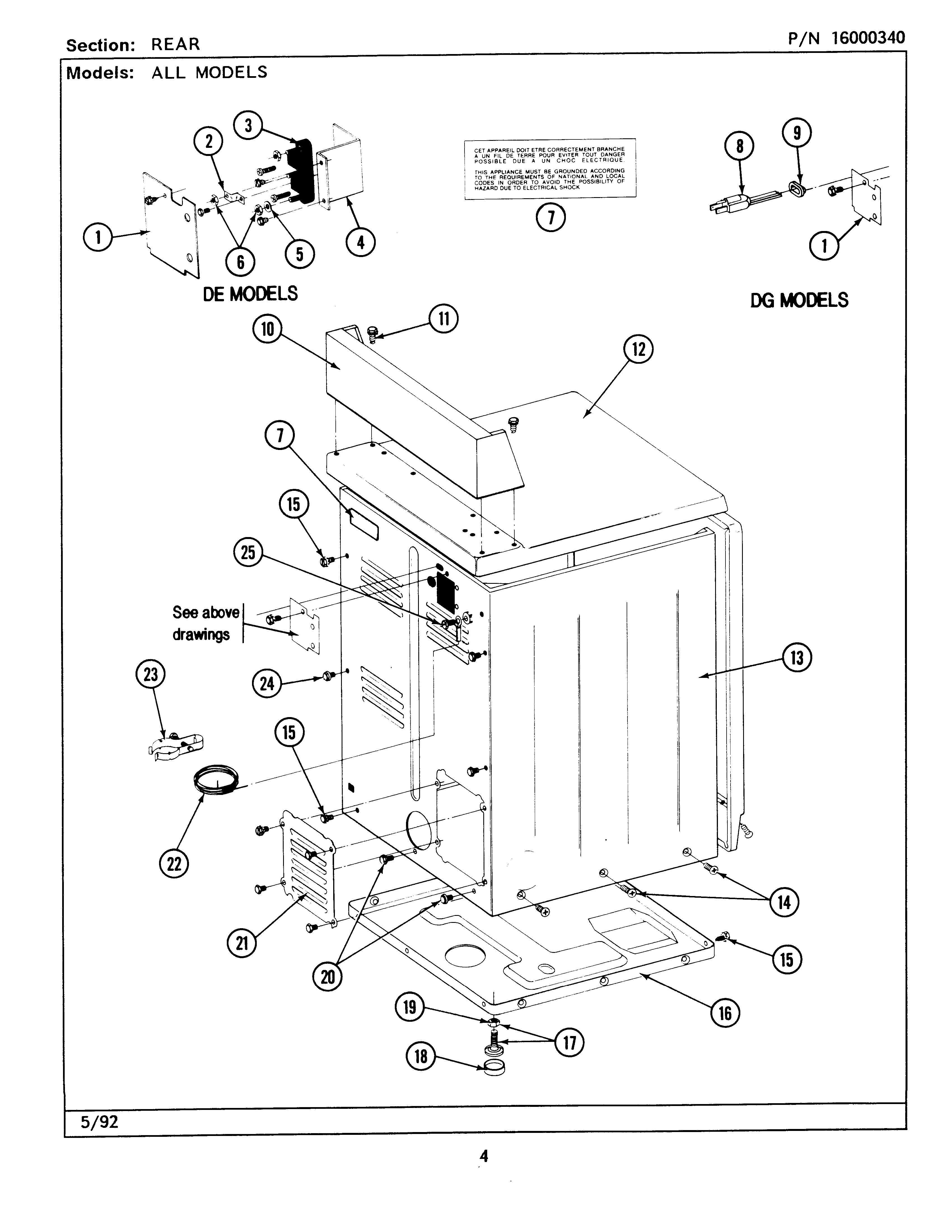

| 001 | MAY Y312905 |
| 002 | PART NOT USED |
| 002 | PART NOT USED |
| 003 | SCREW, No.10-24 X 3/4 INCH-----O |
| 003 | PART NOT USED |
| 004 | PART NOT USED |
| 005 | WPY311270 Whirlpool Washer TE |
| 006 | WP112432 Whirlpool Nut Assembly |
| 007 | INSTRUCTION LABEL |
| 008 | MAY 302521 |
| 009 | GROMMET |
| 011 | MAY 212276 |
| 012 | MAY 307105 |
| 014 | 213007 Whirlpool Screw #12 |
| 015 | MAY Y313561 |
| 016 | MAY Y303361 |
| 017 | W10176519 Whirlpool Leveling Feet |
| 018 | WPY314137 Whirlpool Rubber Foot |
| 019 | WP62739 Whirlpool Nut |
| 021 | MAY Y313559 |
| 021 | MAY Y312951 |
| 021 | WP90767 Whirlpool Screw |
| 022 | WP311155 Whirlpool Wire Assembly |
| 023 | MAY 301548 |
| 024 | MAY Y310632 |
| 025 | DOWEL PIN FOR HANDLE |
