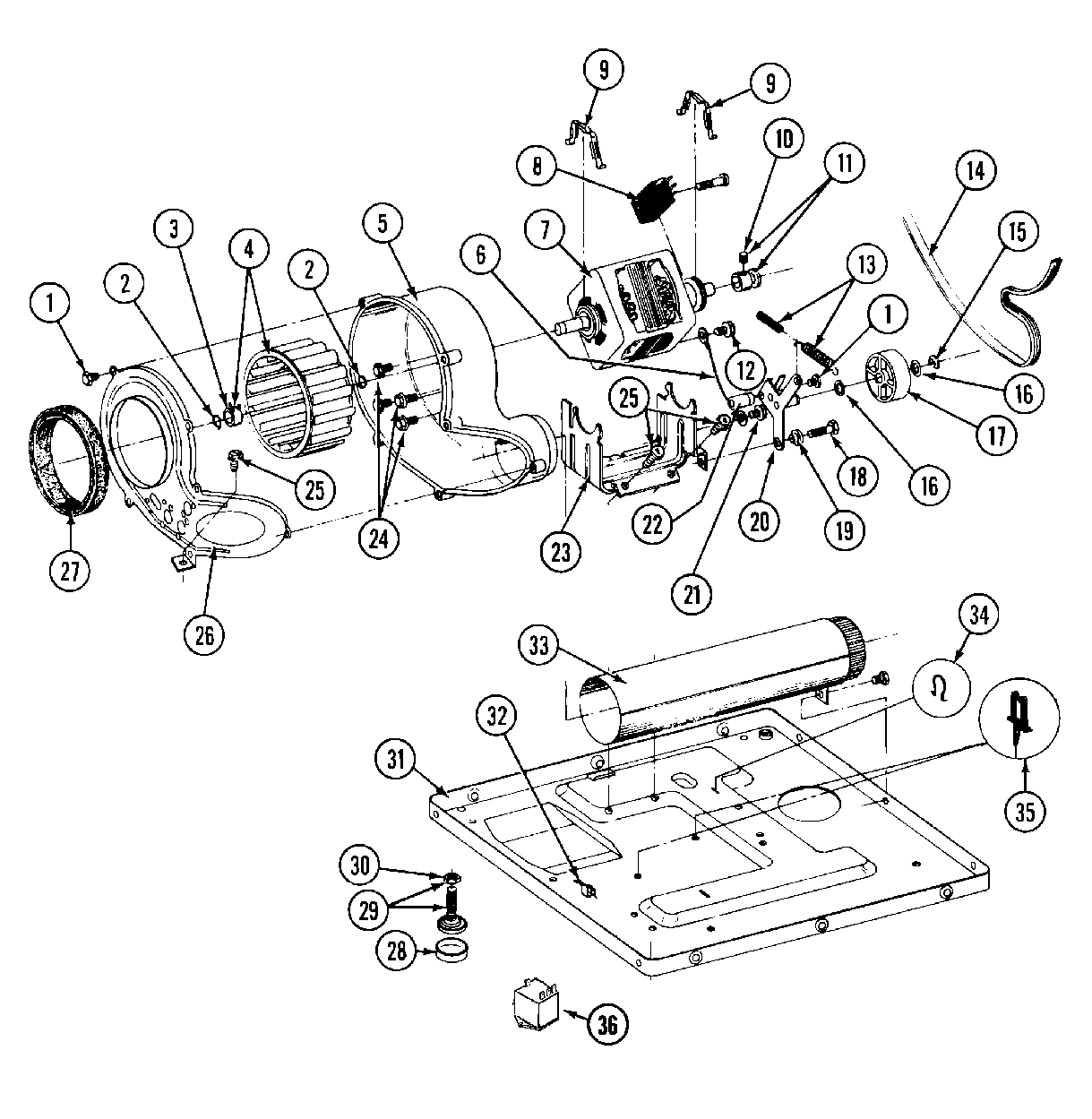

MDG26PCABL 08 – MOTOR DRIVE, BLOWER & BASE FRAME

Products

Position	Product
001	WPW10116751 Whirlpool Screw
002	WP9703438 Whirlpool Snap Retaining Ring
003	WP312967 Whirlpool Clamp
004	Y303836 Whirlpool Dryer Blower Wheel
005	MAY Y312893
006	MAY 901220
007	W10410999 Whirlpool Dryer Drive Motor
008	MAY Y303877
008	MAY 306207
008	MAY Y303879
009	WPY015825 Whirlpool Motor Clip
010	MAY Y053241
011	MAY Y305185
012	MAY 910343
013	MAY Y303945
014	WPY312959 Whirlpool Dryer Drum Belt
015	WP354987 Whirlpool C-Clip
016	MAY Y312527
017	WP6-3037050 Whirlpool Idler Pulley
018	WPY014874 Whirlpool Screw
019	SLEEVE, IDLER ARM ----S
020	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
021	WP90767 Whirlpool Screw
022	WPW10116756 Whirlpool Spacer
023	DOWEL PIN FOR HANDLE
024	MAY Y310632
025	MAY Y313561
026	COVER, BLOWER
027	WPY312901 Whirlpool Blow Seal
028	WP210684 Whirlpool Dishwasher Leveling Leg Pad
029	LEG, ADJUSTABLE (W/NUT)---S
030	WP210385 Whirlpool Lock Nut
031	MAY Y303361
032	MAY Y310376
033	MAY Y303442
034	MAY 410490
035	MAY Y313262
036	MAY 306199
