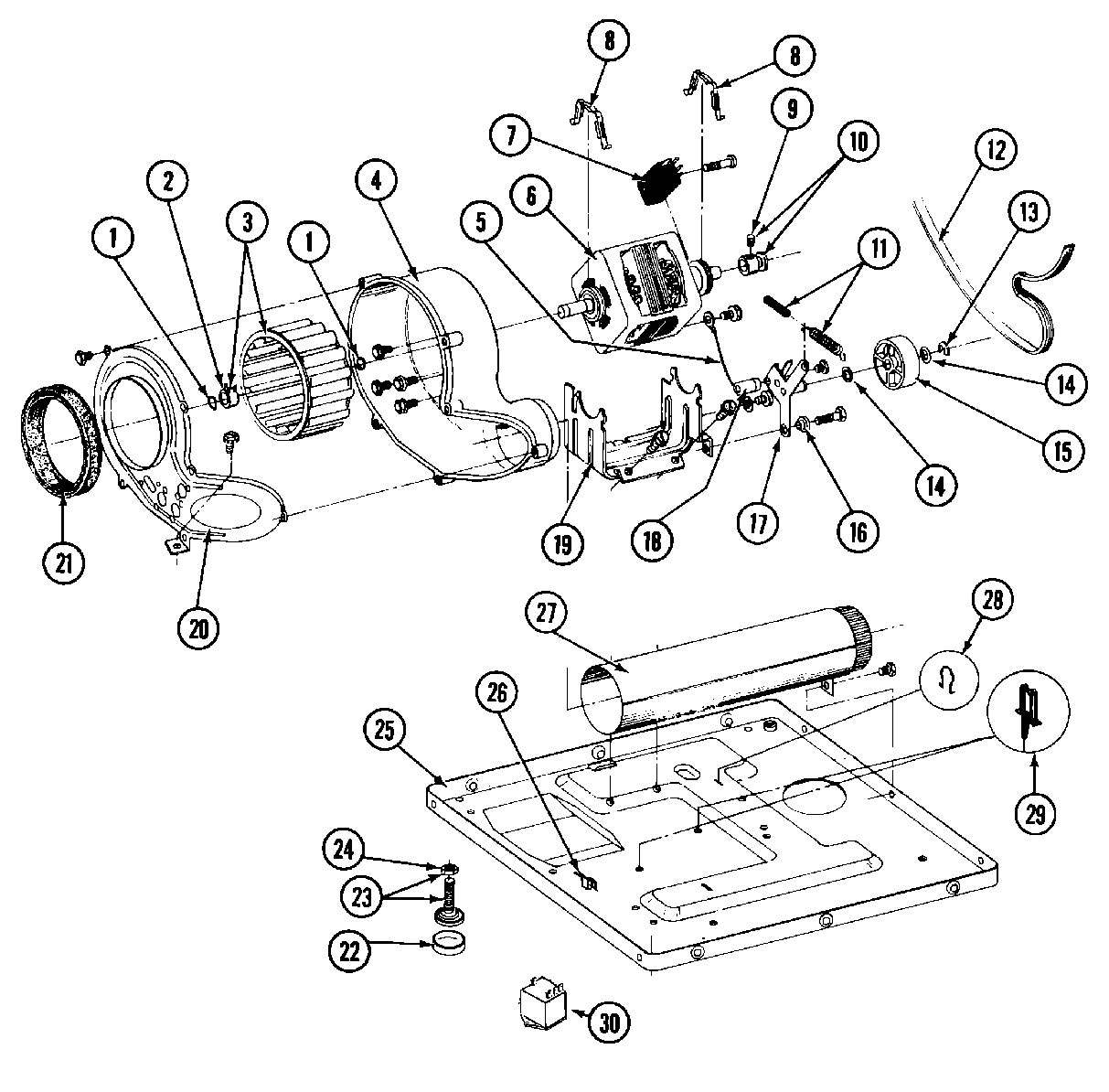

MDG27CSABL 09 – MOTOR, BLOWER & BASE FRAME

Products

Position	Product
001	WP9703438 Whirlpool Snap Retaining Ring
002	WP312967 Whirlpool Clamp
003	Y303836 Whirlpool Dryer Blower Wheel
004	MAY Y312893
005	MAY 901220
005	MAY 910343
006	W10410999 Whirlpool Dryer Drive Motor
007	MAY Y303877
007	MAY 306207
007	MAY Y303879
008	WPY015825 Whirlpool Motor Clip
009	MAY Y053241
010	MAY Y305185
011	MAY Y303945
012	WPY312959 Whirlpool Dryer Drum Belt
013	WP354987 Whirlpool C-Clip
014	MAY Y312527
015	WP6-3037050 Whirlpool Idler Pulley
016	SLEEVE, IDLER ARM ----S
017	WPW10116751 Whirlpool Screw
017	WPY014874 Whirlpool Screw
017	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
018	WPW10116756 Whirlpool Spacer
019	DOWEL PIN FOR HANDLE
020	MAY Y313561
020	MAY 314847
021	WPY312901 Whirlpool Blow Seal
022	WP210684 Whirlpool Dishwasher Leveling Leg Pad
023	LEG, ADJUSTABLE (W/NUT)---S
024	WP210385 Whirlpool Lock Nut
025	MAY Y303361
026	MAY Y310376
027	MAY Y303442
028	MAY 410490
029	MAY Y313262
030	MAY 307928
