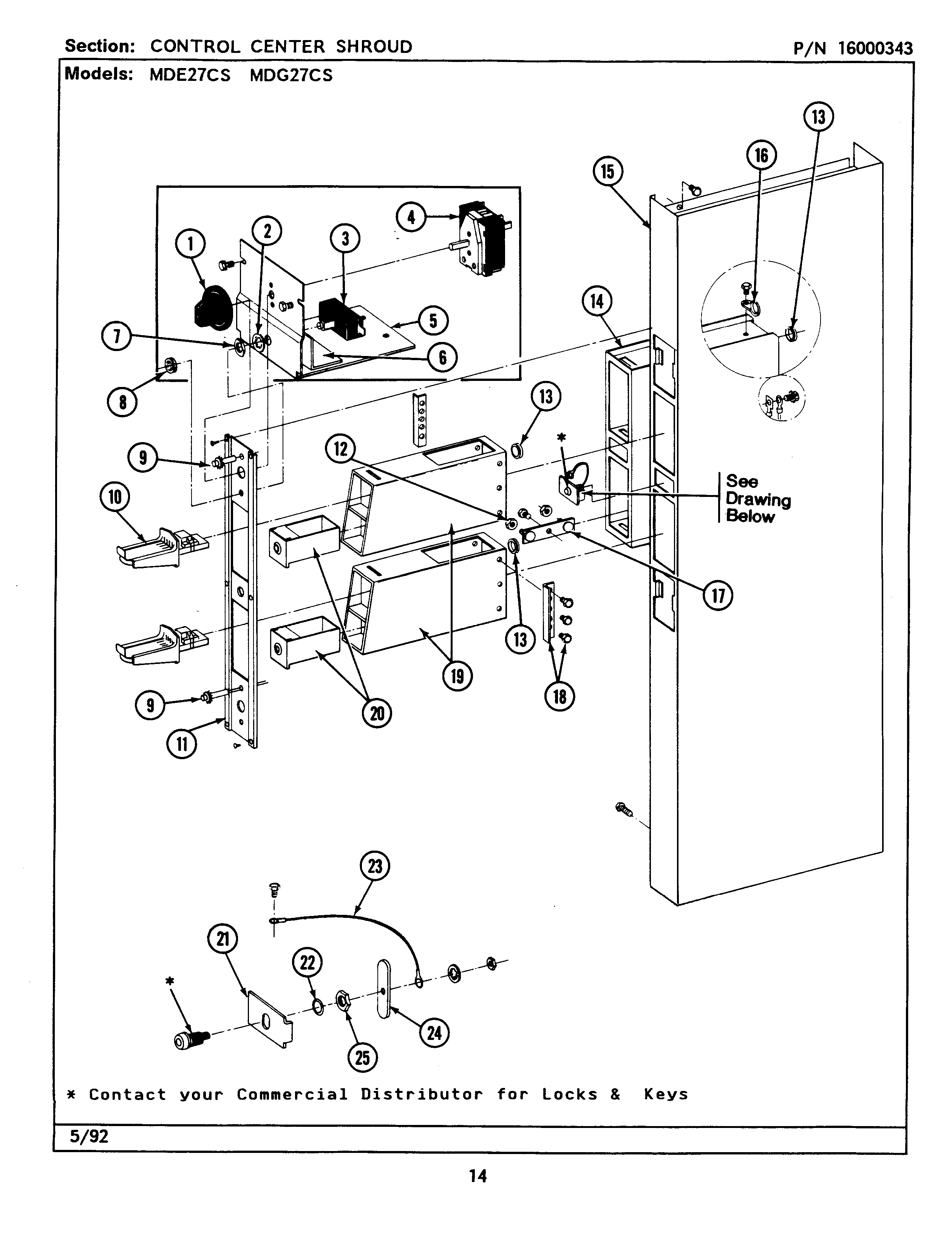

MDG27CSAGL 03 – CONTROL CENTER SHROUD

Products

Position	Product
001	MAY 205663
002	WPW10139799 Whirlpool Washer
003	WPW10149462 Whirlpool Push-to-Start Switch
004	WP488234 Whirlpool Air Conditioner Screw
004	MAY 307253
005	MAY Y314261
007	MAY Y312706
008	MAY Y312702
011	MAY 315037
011	MAY Y313424
012	WP62739 Whirlpool Nut
013	MAY Y313671
014	MAY Y313559
014	WP90767 Whirlpool Screw
014	MAY 305534
014	MAY Y310632
015	WP98165 Whirlpool Screw
016	CABLE STRAP-HARNESS TO BASE
017	MAY 212276
018	MAY Y014872
019	MAY Y307081
020	COIN BOX-WHITE
020	COIN BOX-ALMOND
021	MAY 313428
022	DOWEL PIN FOR HANDLE
023	MAY Y303981
023	WPW10139210 Whirlpool Screw
024	MAY Y313427
025	W11395752 Whirlpool Nut
