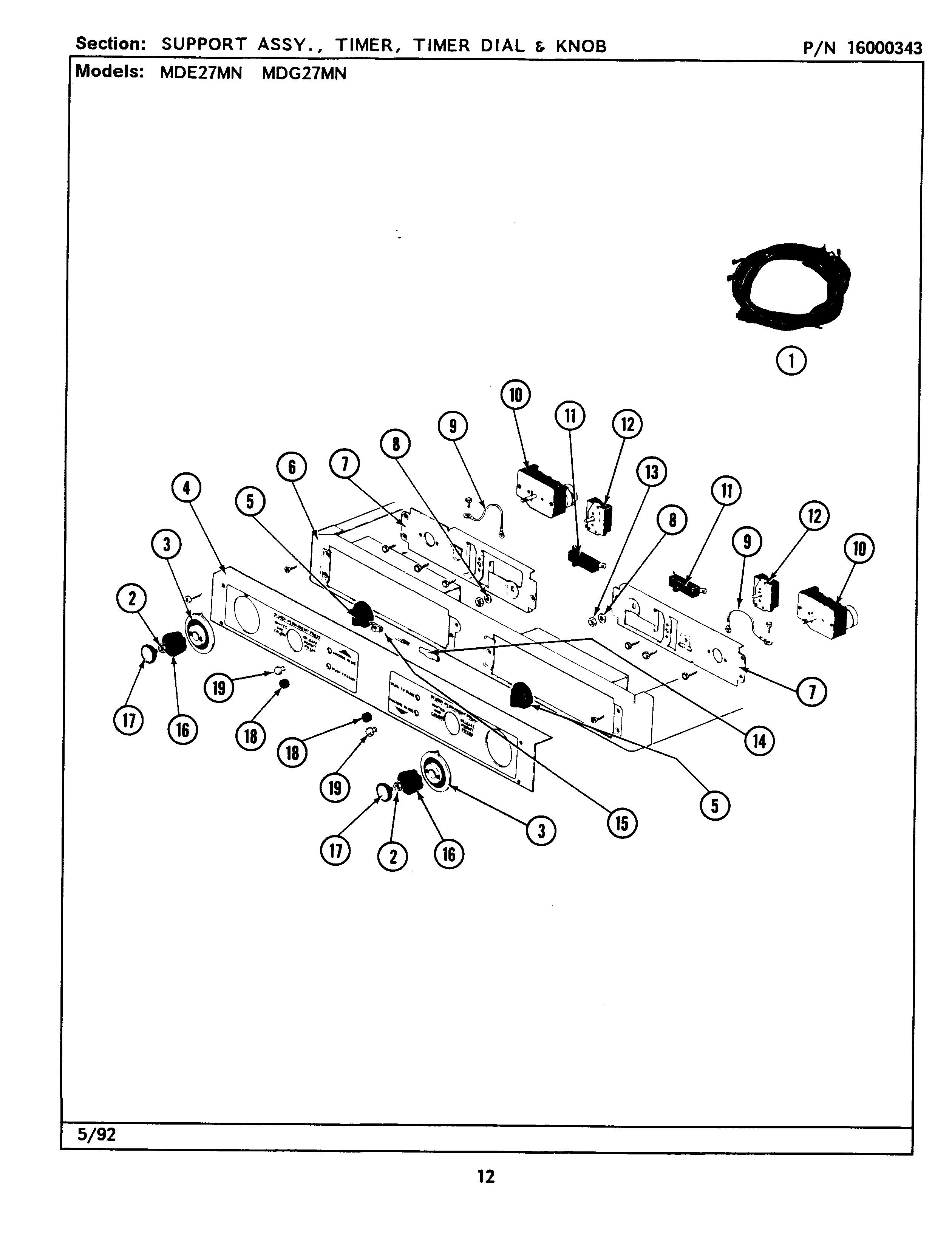

MDG27MNABW 03 – SUPPORT ASSY., TIMER, TIMER DIAL & KNOB

MDG27MNABW 03 – SUPPORT ASSY., TIMER, TIMER DIAL & KNOB

Written by

in

MDG27MNABW 03 – SUPPORT ASSY., TIMER, TIMER DIAL & KNOB

Products

PositionProduct
002W10155650 Whirlpool Nut
003MAY 314725
004MAY 314664
005MAY 205663
006MAY Y310632
007MAY 910186
007DOWEL PIN FOR HANDLE
008WPW10139799 Whirlpool Washer
009WPW10139210 Whirlpool Screw
009WP489399 Whirlpool Refrigerator Screw
009MAY 205810
010MAY Y307296
011WPW10149462 Whirlpool Push-to-Start Switch
012MAY 307253
012WP488234 Whirlpool Air Conditioner Screw
013MAY Y312706
014MAY Y201110
015LIGHT, INDICATOR
017WPW10133501 Whirlpool Cap
018MAY Y312702
019WP215564 Whirlpool Indicator Lens
