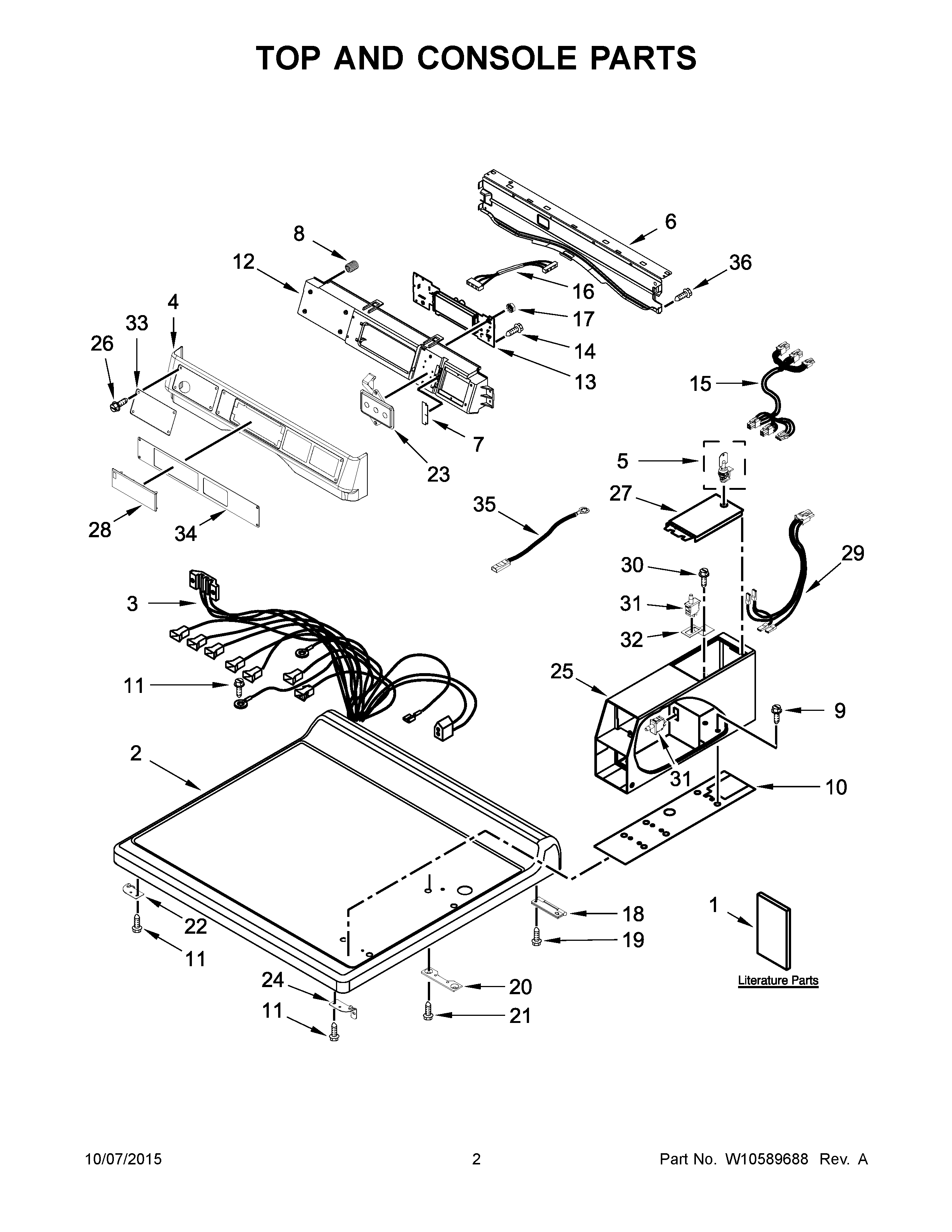

MDG28PDCGW0 02 – TOP AND CONSOLE PARTS

MDG28PDCGW0 02 – TOP AND CONSOLE PARTS

Written by

in

MDG28PDCGW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W10590742
1	MAY W10198150
1B	MAY W10589718
1C	MAY W10166388
2	MAY W10137411
3	MAY W10745629
4	MAY W10779120
5	ASSEMBLY, CAM & SECURITY LOCK
6	MAY 8565237
7	MAY W10187276
8	INSERT
9	BOLT
10	MAY W10137448
11	SCREW
12	MAY W10137427
13	MAY W10824283
14	MAY 489136
15	MAY W10166308
16	MAY W10166307
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	MAY 342055
20	MAY 3347825
21	SCREW
22	MAY W10137445
23	MAY W10787446
24	MAY W10137444
25	CASE, METER
26	SCREW
27	ASSEMBLY, SERVICE DOOR
28	COVER, DISPLAY
29	MAY W10211244
30	MAY W10139210
31	SWITCH, VAULT SERVICE DOOR
32	MAY W10133508
33	MAY W10801805
34	MAY W10804029
35	MAY W10257051
36	Screw, 8-18 x 3/4
