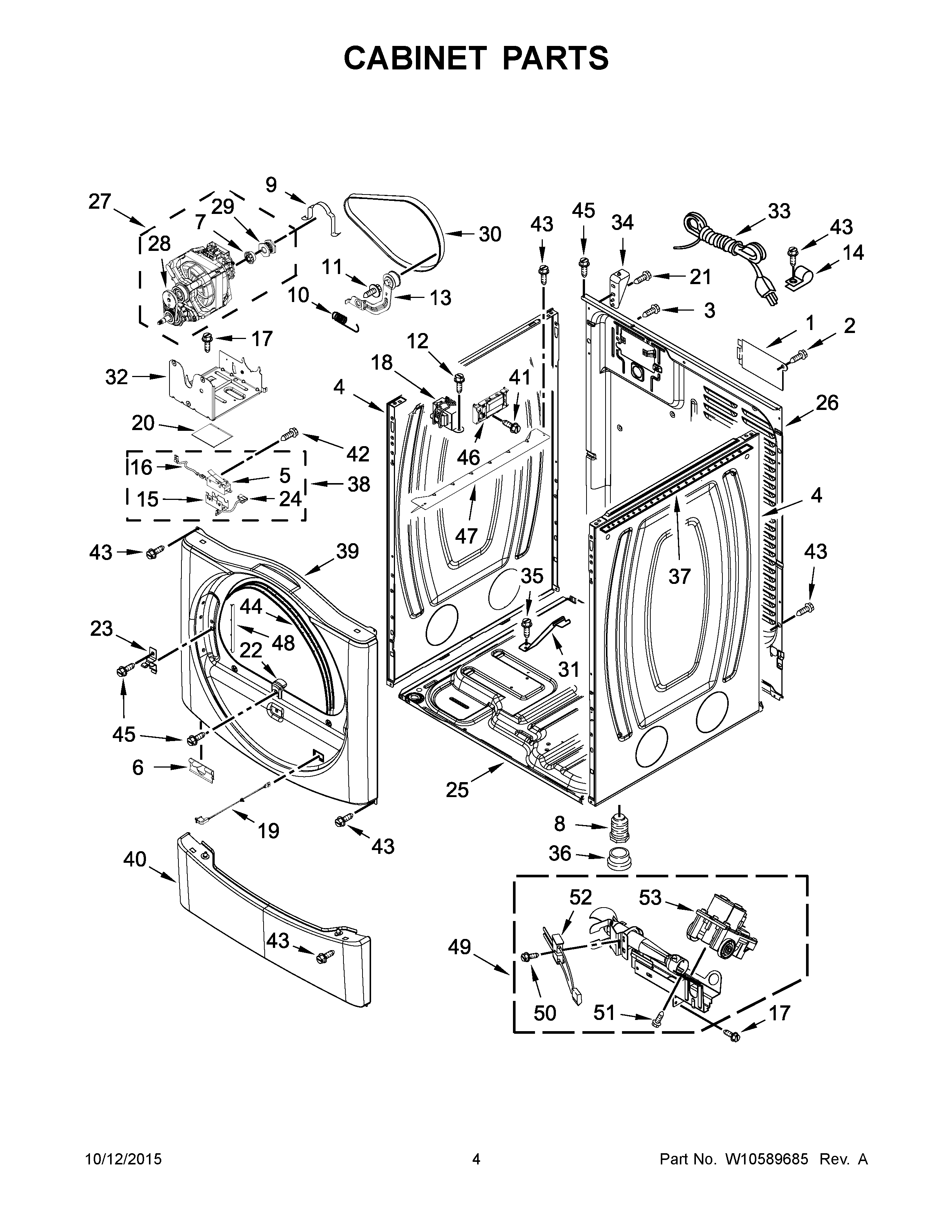

MDG28PDCWW0 03 – CABINET PARTS

MDG28PDCWW0 03 – CABINET PARTS

Written by

in

MDG28PDCWW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	MAY W10470674
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	SCREW
4	MAY W10542714
5	Switch, Broken Belt
6	MAY 8519459
7	MAY 3393657
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
13	MAY W10344192
14	MAY 3978776
15	MAY 8564011
16	Wire, Belt (To Protector)
17	SCREW
18	MAY W10131839
19	DOOR SWITCH ASSEMBLY
20	DAPENING PANEL
22	MAY 8580015
23	STRIKE, DOOR
24	MAY 8539892
25	MAY 8565046
26	MAY 8565059
27	MAY W10396034
28	MAY 3405160
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 8529757
32	MAY W10135695
33	MAY 3401401
34	MAY W10137398
35	Screw
36	BOOT, FOOT
37	SEAL-FOAM (IEC)
38	MAY W10155571
39	MAY W10549665
40	MAY 8540621
41	MAY 8533971
42	Screw, 6-20 x 1-1/16
43	SCREW
44	MAY 3387242
45	SCREW
46	MAY W10166305
47	Bracket, Control
48	Plug, Front Panel
49	MAY W10135231
50	MAY 3393909
51	SCREW
52	MAY 686590
53	VALVE, GAS (60 HZ -COMPLETE)
