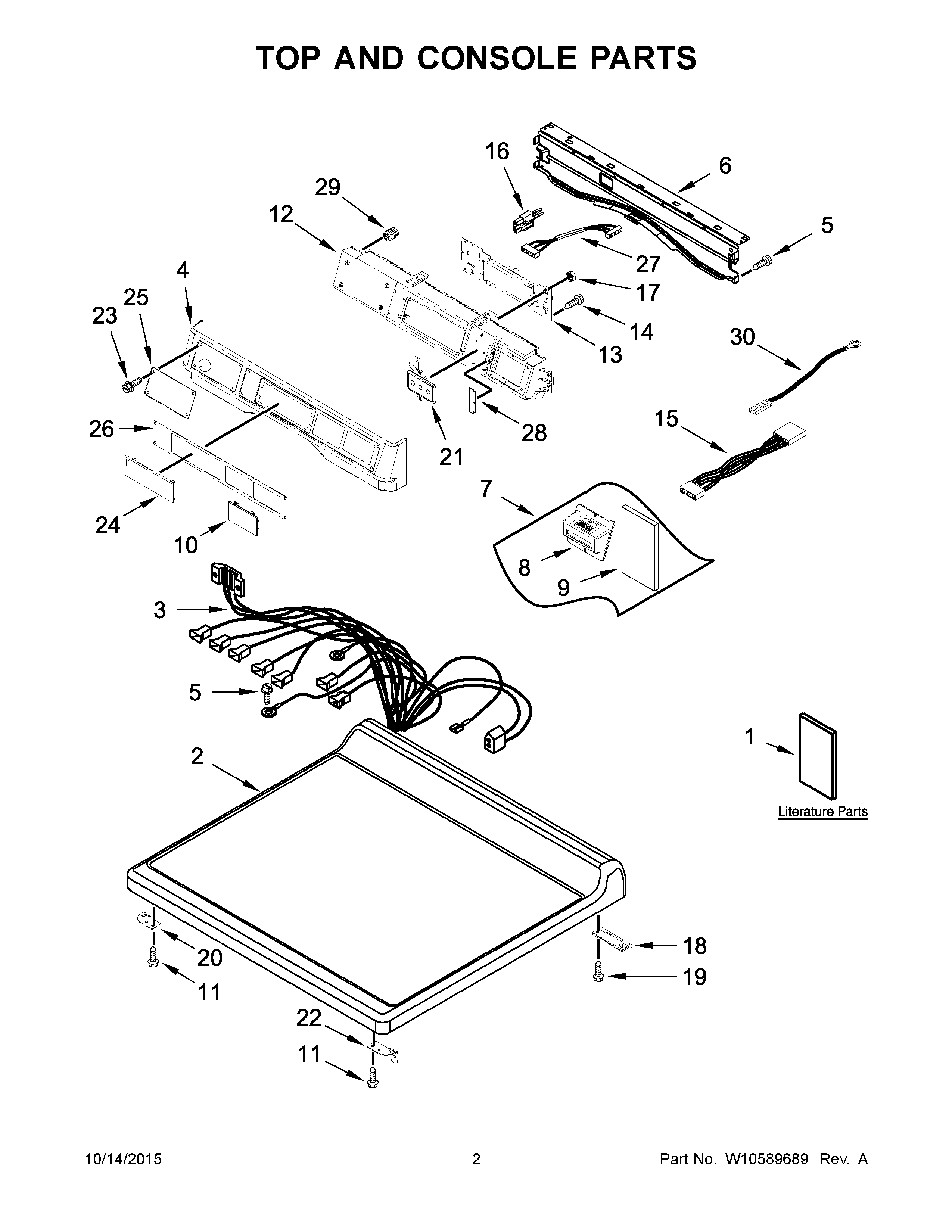

MDG28PNCGW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AMAY W10590742
1MAY W10198150
1BMAY W10589718
2TOP (WHITE)
3MAY W10745629
4MAY W10779120
5Screw, 8-18 x 3/4
6MAY 8565237
7CARD READER, CONVERSION KIT VAULT SWITCH
8MAY W10137454
9MAY W10313706
10MAY W10213906
11SCREW
12MAY W10137427
13MAY W10824282
14MAY 489136
15HARNESS, WIRING CARD READER
16JUMPER, SWITCH SERVICE/VAULT
17NUT
18HINGE ASSEMBLY (WHITE)
19MAY 342055
20MAY W10137445
21MAY W10787446
22MAY W10137444
23SCREW
24COVER, DISPLAY
25MAY W10804029
26MAY W10801806
27MAY W10166307
28MAY W10187276
29INSERT
30MAY W10257051
