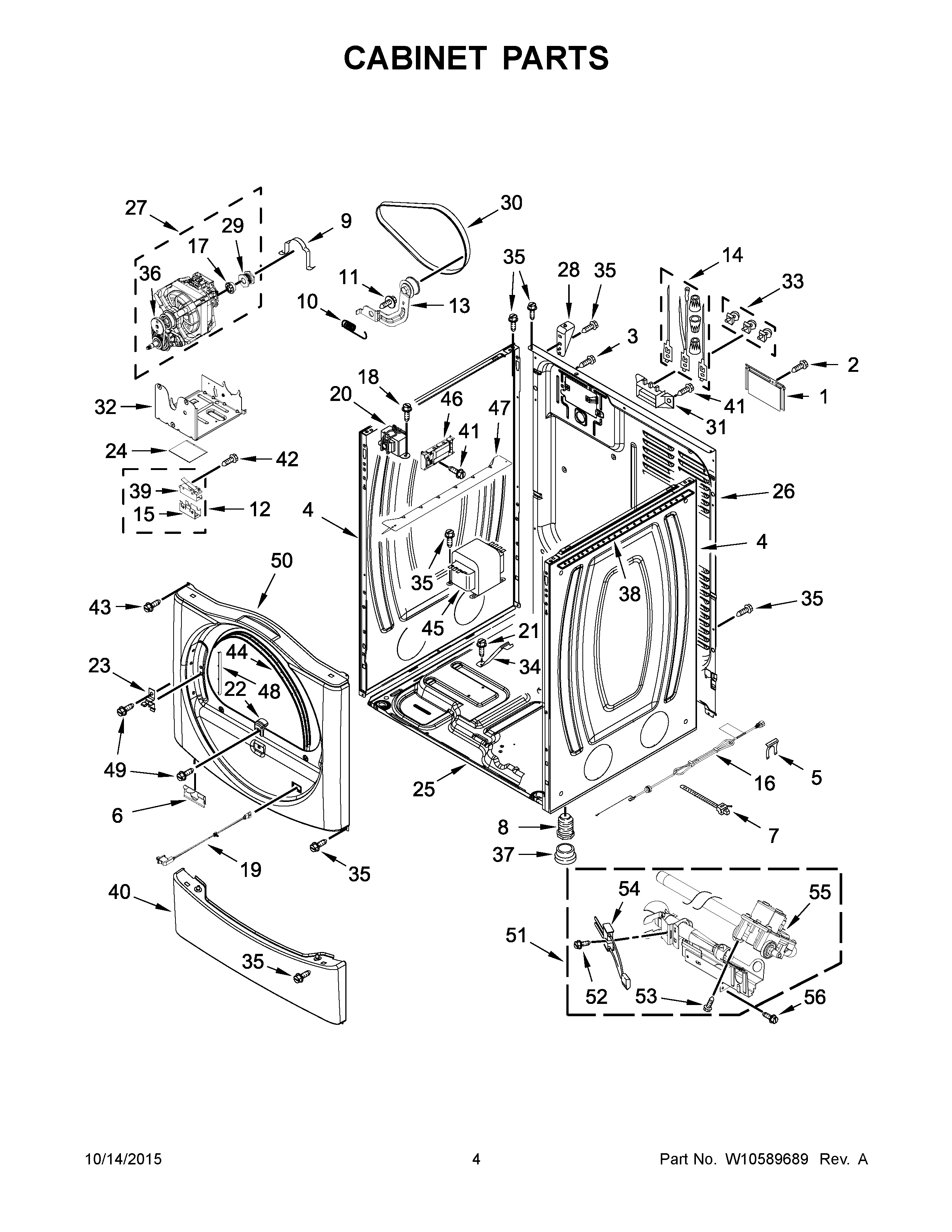

MDG28PNCGW0 03 – CABINET PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10470674
NI	MAY 279810
NI	10A CORD ADAPTER (BRITISH)
NI	MAY W10476818
NI	10A CORD LOCK
NI	10A CORD ADAPTER (EUROPEAN)
1	MAY W10601020
2	Screw, 8-18 x 3/8
3	SCREW
4	MAY W10542714
5	STRAIN-RELIEF CLIP
6	MAY 8519459
7	CABLE TIE
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	ASSEMBLY, SWITCH
13	MAY W10344192
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8564011
16	CORD-POWER
17	MAY 3393657
19	MAY W10459028
20	TRANSFORMER, 240-22.5 VAC
21	SCREW,8-18 X 3/8
22	MAY 8580015
23	STRIKE, DOOR
24	DAPENING PANEL
25	MAY W10225178
26	MAY W10225180
27	ASSEMBLY, MOTOR 50 HZ.
28	MAY W10137398
29	MAY W10167237
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	MAY W10181903
35	SCREW
36	MAY 3405160
37	BOOT, FOOT
38	SEAL-FOAM (IEC)
39	ASSEMBLY, SWITCH ACTUATOR
40	MAY 8540621
41	MAY 8533971
42	SCREW
43	SCREW
44	MAY 3387242
45	MAY W10753690
46	BOARD, CONTROL
47	Bracket, Control
48	Plug, Front Panel
49	SCREW
50	PANEL, FRONT (WHITE)
51	MAY W10096909
52	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
53	SCREW
54	MAY 686590
55	VALVE, GAS 50 HZ. (COMPLETE)
56	SCREW
