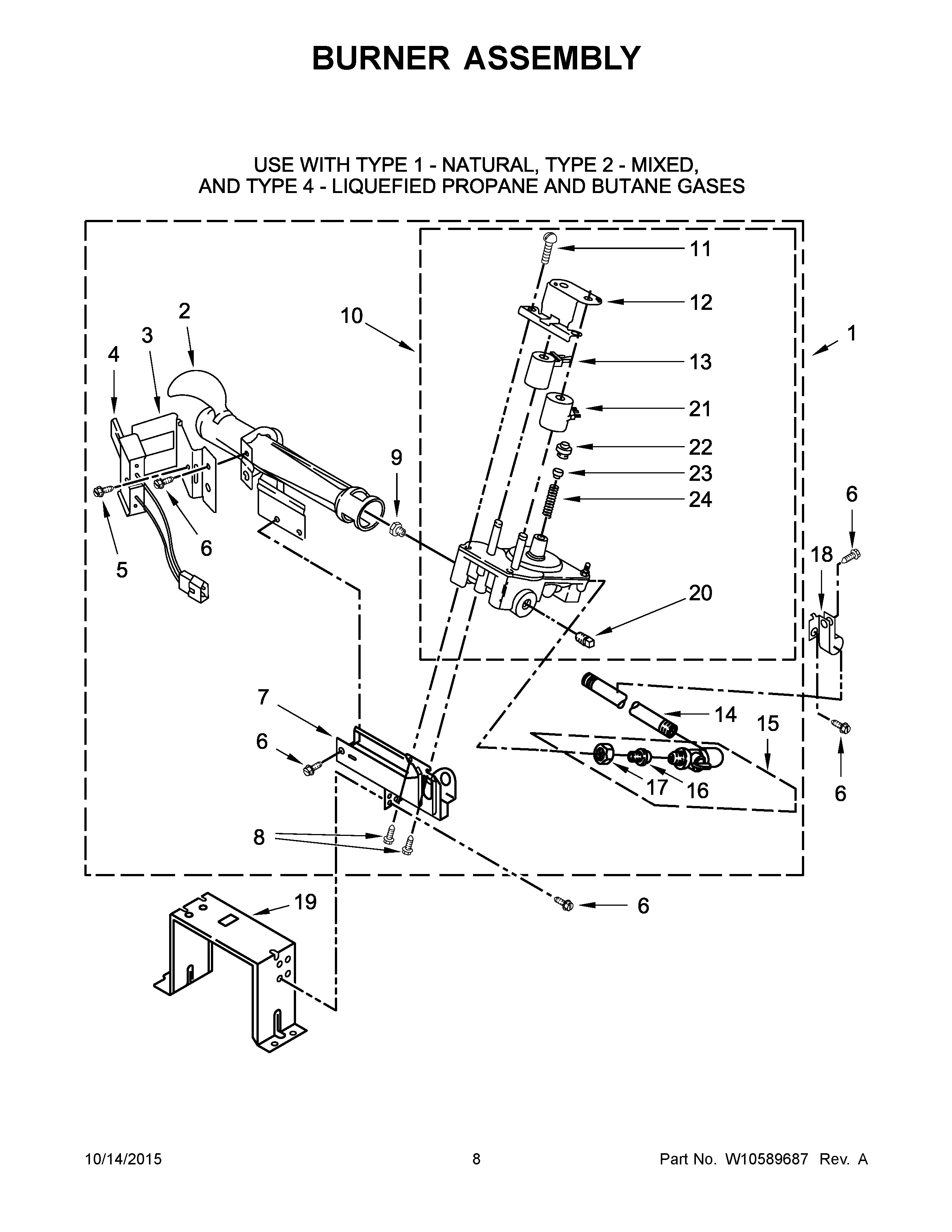

MDG28PRCWW0 05 – BURNER ASSEMBLY

Products

Position	Product
NI	MAY W10135245
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10135231
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9A	MAY 234868
9	Orifice, Burner (Type 1)
10	VALVE, GAS (60 HZ -COMPLETE)
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
18	MAY 3387561
19	MAY 3389889
20	MAY 239822
21	MAY W10110395
22	Valve & Union Shut-Off
23	MAY 3393767
24	MAY 233076
