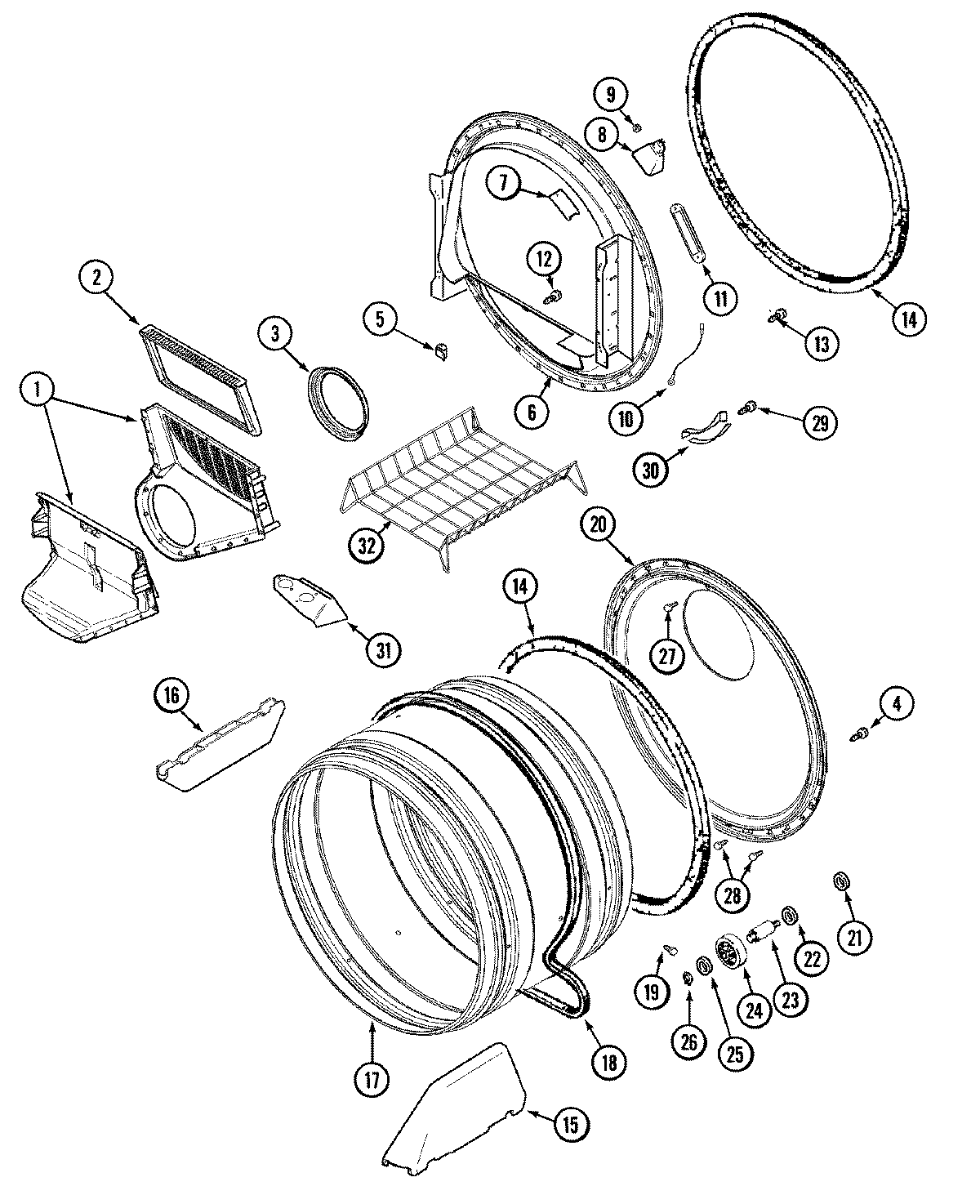

MDG3000AWQ 07 – TUMBLER (MDG3000AXQ/AWQ)

Products

Position	Product
1	MAY 33001799
2	WP33001808 Whirlpool Lint Filter
3	MAY 33001758
4	SCREW, WATER VALVE BRACKET
5	MAY Y310376
6	MAY 33001868
7	MAY 33001869
7	MAY 33001871
8	WP22002263 Whirlpool Dryer 10W Light Bulb
8	MAY 33001870
9	MAY 214872
10	MAY Y303711
10	WP90767 Whirlpool Screw
11	MAY 33001809
11	WP3177991 Whirlpool Screw
12	MAY 312311
13	WP3400065 Whirlpool Refrigerator Screw
14	WP33001807 Whirlpool Felt Seal
15	MAY 33001756
16	WP33001755 Whirlpool Drum Baffle
17	MAY 33001889
18	WP33002535 Whirlpool Dryer Drive Belt
19	MAY 33001788
20	MAY 33001801
21	WP33001443 Whirlpool Hex Nut
23	WP6-3129480 Whirlpool Roller Shaft
24	MAY Y303373
25	WP312535 Whirlpool Washer
26	WP9703438 Whirlpool Snap Retaining Ring
27	MAY 210932
28	WP489128 Whirlpool Refrigerator Screw
29	WP210720 Whirlpool Rivet
30	306508 Whirlpool Dryer Front Glide Kit
32	MAY 33001917
