MDG3000AWW 04 – CONTROL PANEL – Aparts

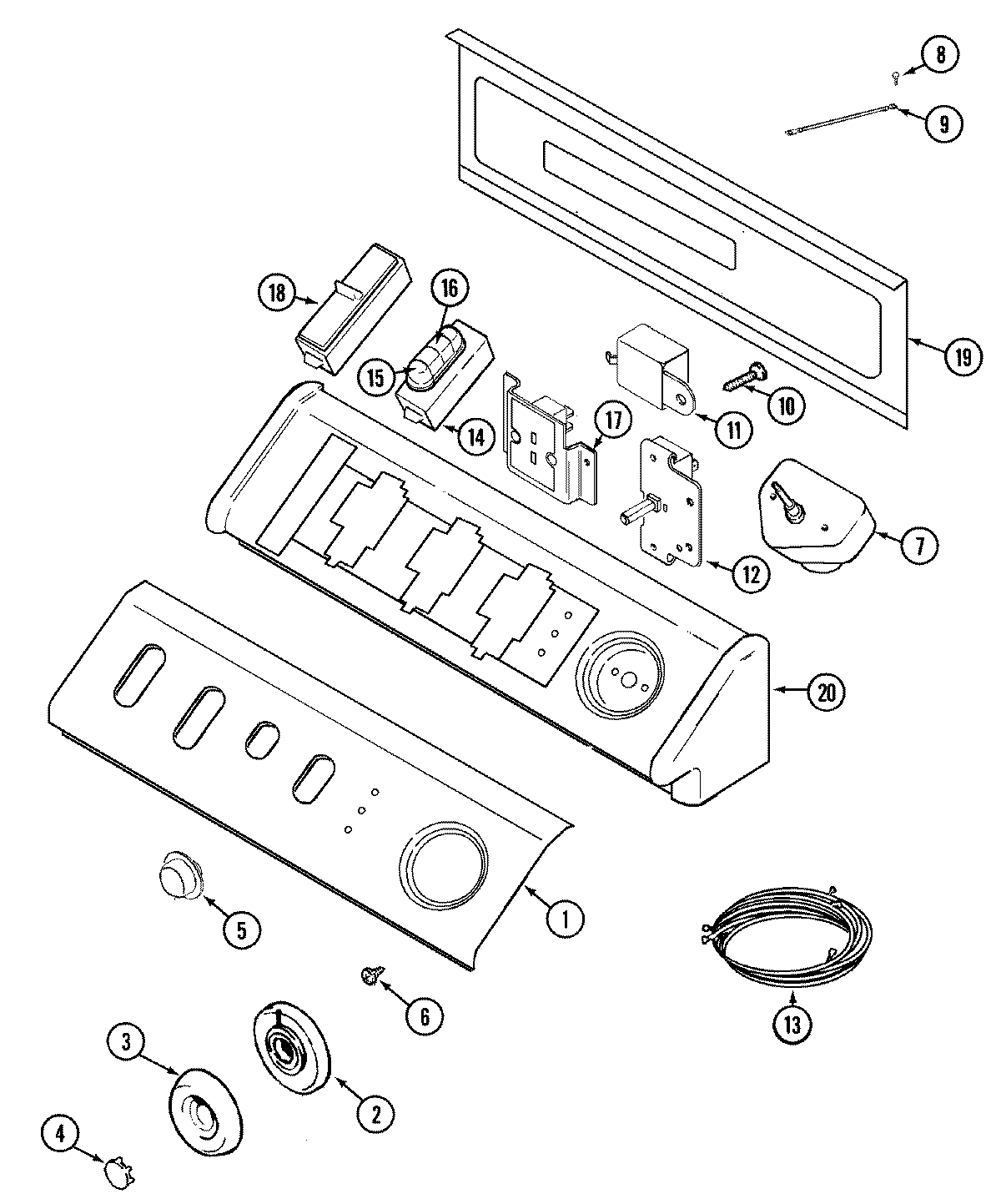

MDG3000AWW 04 – CONTROL PANEL

Products

Position	Product
1	MAY 33001857
1	MAY Y22002339
2	WP33001621 Whirlpool Dial Knob
3	WP22001659 Whirlpool Timer Knob
4	WP22001664 Whirlpool Timer Knob
5	MAY 33001619
6	WP90767 Whirlpool Screw
7	WP33001730 Whirlpool Timer
8	MAY 210186
9	MAY 33001859
11	MAY 33001848
11	MAY 33001660
12	MAY 33001861
13	MAY 33001887
13	MAY 33001864
14	MAY 22001908
15	MAY 22001788
16	MAY 22001789
17	MAY 33001661
18	MAY 33001657
19	MAY 33001806
19	MAY 216423
20	MAY 22002285
