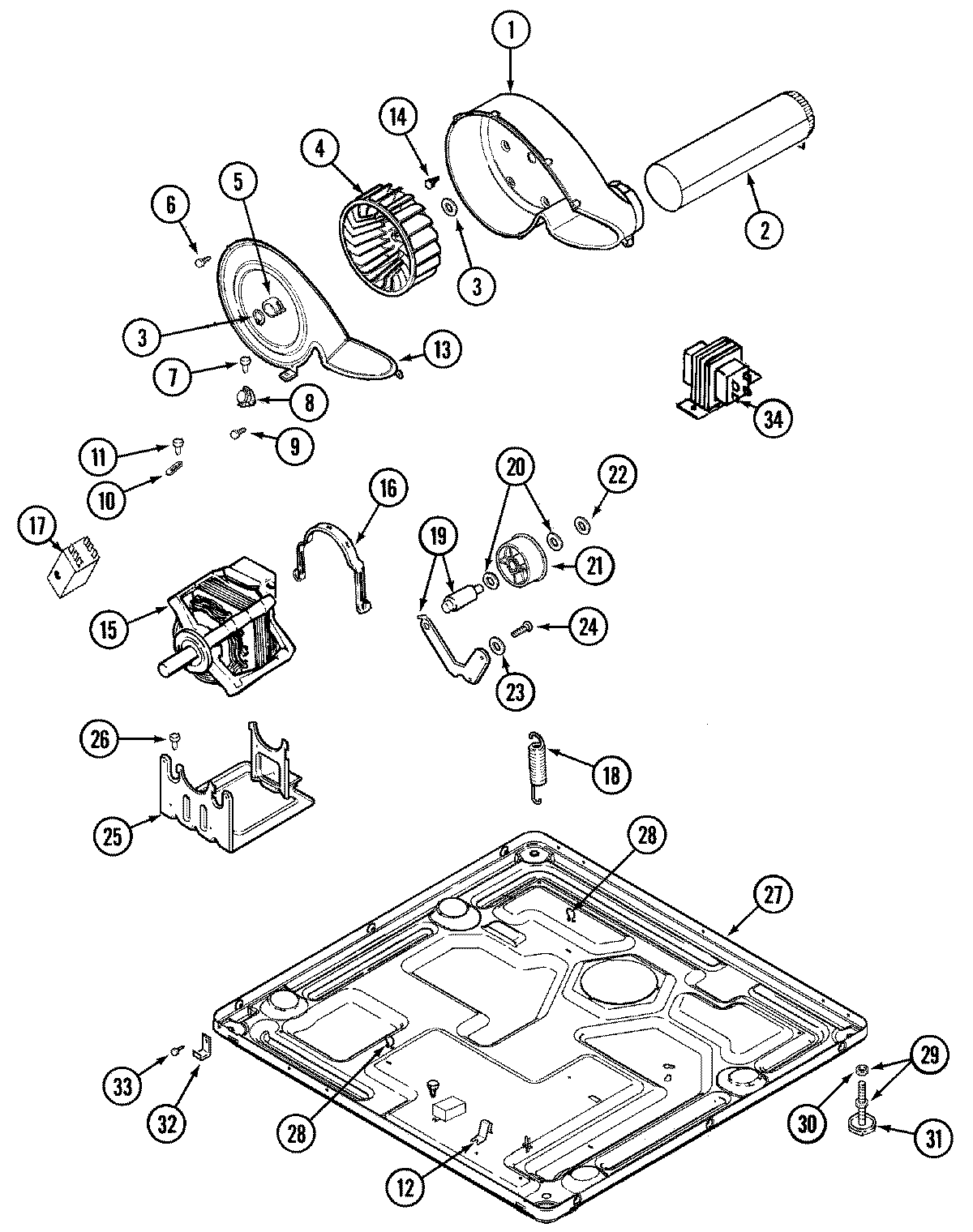

MDG3050AGW 06 – MOTOR DRIVE

MDG3050AGW 06 – MOTOR DRIVE

Written by

in

MDG3050AGW 06 – MOTOR DRIVE

Products

PositionProduct
1WP33001789 Whirlpool Blower Housing Assembly
2MAY 33001800
3WP9703438 Whirlpool Snap Retaining Ring
433001790 Whirlpool Blower Wheel
4WP33002797 Whirlpool Wheel
5WP312967 Whirlpool Clamp
6WP3400065 Whirlpool Refrigerator Screw
8WP307249 Whirlpool Thermostat
10WP33001762 Whirlpool Dryer Thermal Fuse
11WP489128 Whirlpool Refrigerator Screw
12MAY 22002244
13MAY 33001873
14MAY 314818
15MAY 33001945
15MAY 33002463
15W10197708 Whirlpool Drive Motor Assembly
16WPY015825 Whirlpool Motor Clip
17MAY 33002451
1833002459 Whirlpool Idler Spring
18MAY 33002461
18MAY 33002157
19WP6-3705180 Whirlpool Idler Pulley Lever
20MAY Y312527
21WP6-3700340 Whirlpool Belt Tension Pulley Wheel
22WP354987 Whirlpool C-Clip
23WP315772 Whirlpool Sleeve
24WPY014874 Whirlpool Screw
25MAY 33001752
25MAY 33002466
26MAY Y313561
27MAY 33002465
27MAY 33002622
27MAY 33001845
28MAY 410490
29W10176519 Whirlpool Leveling Feet
30WP62739 Whirlpool Nut
31WPY314137 Whirlpool Rubber Foot
32MAY 22002239
33SCREW, WATER VALVE BRACKET
34MAY 33001948
35SCREW, SELF DRILLING
