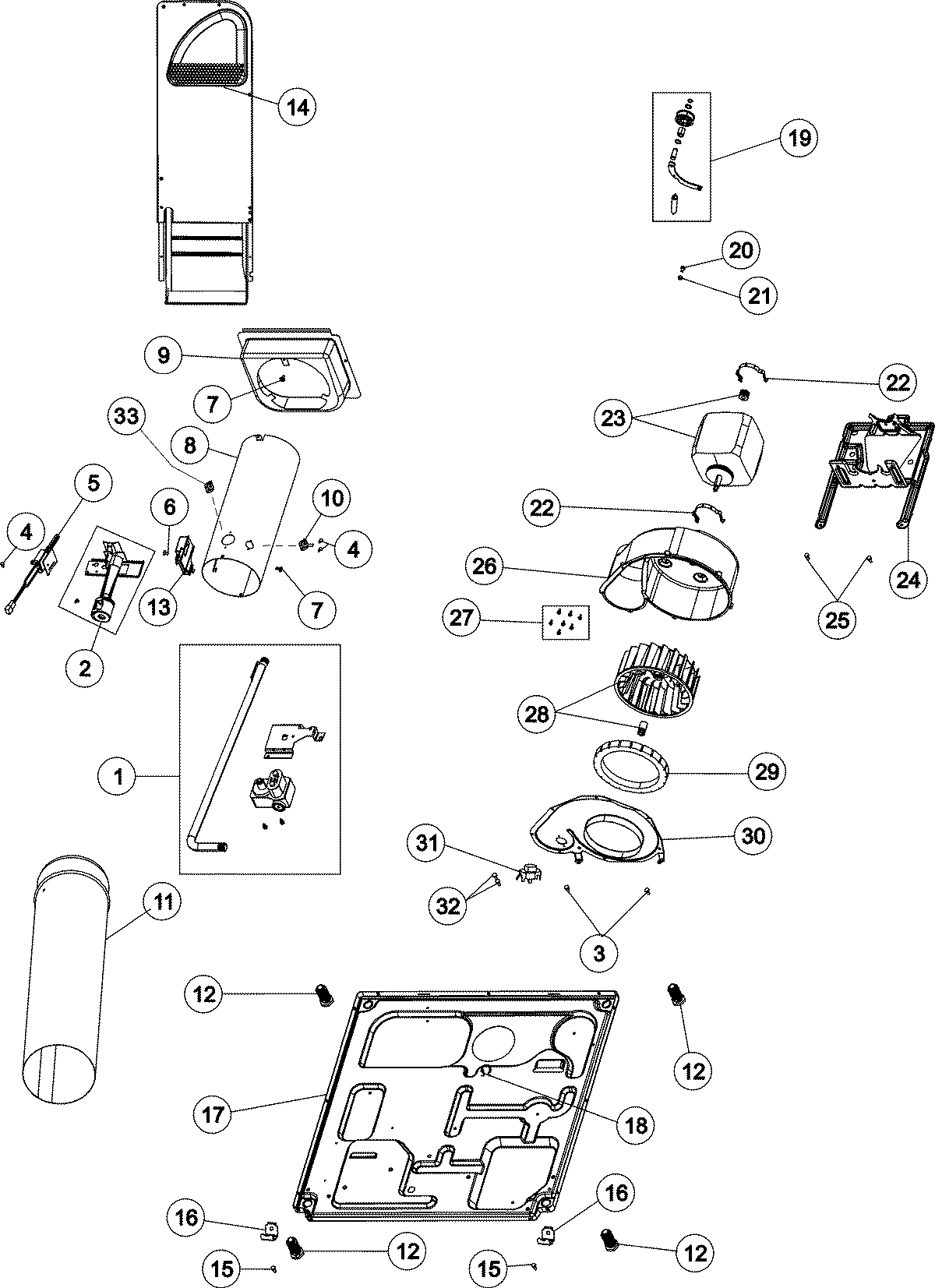

MDG308DAWW 01 – BASE, HEATING & MOTOR

Products

Position	Product
1	MAY 37001127
2	MAY 650P3
2	MAY 649P3
2	MAY Y56234
4	MAY 56692
5	MAY 40069801
6	WP3177991 Whirlpool Screw
7	WP3390631 Whirlpool Screw
8	MAY 37001041
9	MAY 500122
10	489P3 Speed Queen High Limit Thermostat
11	MAY 505518
12	MAY Y500101
13	MAY Y56231
14	MAY 503605
16	MAY 37001145
17	MAY 37001156
18	MAY 504034
19	WP37001287 Whirlpool Dryer Idler Lever Shaft Pulley
20	D500824 Speed Queen Screw
21	WPW10139757 Whirlpool Nut
22	WP660658 Whirlpool Clamp
23	MAY 40048501
24	MAY 503613
25	WP27001200 Whirlpool Screw
26	MAY 56020
27	MAY 31260
28	MAY 56000
29	MAY 37001119
30	MAY 500078
31	WP37001136 Whirlpool Dryer Cycling Thermostat
32	MAY 501086
33	MAY 40113801
