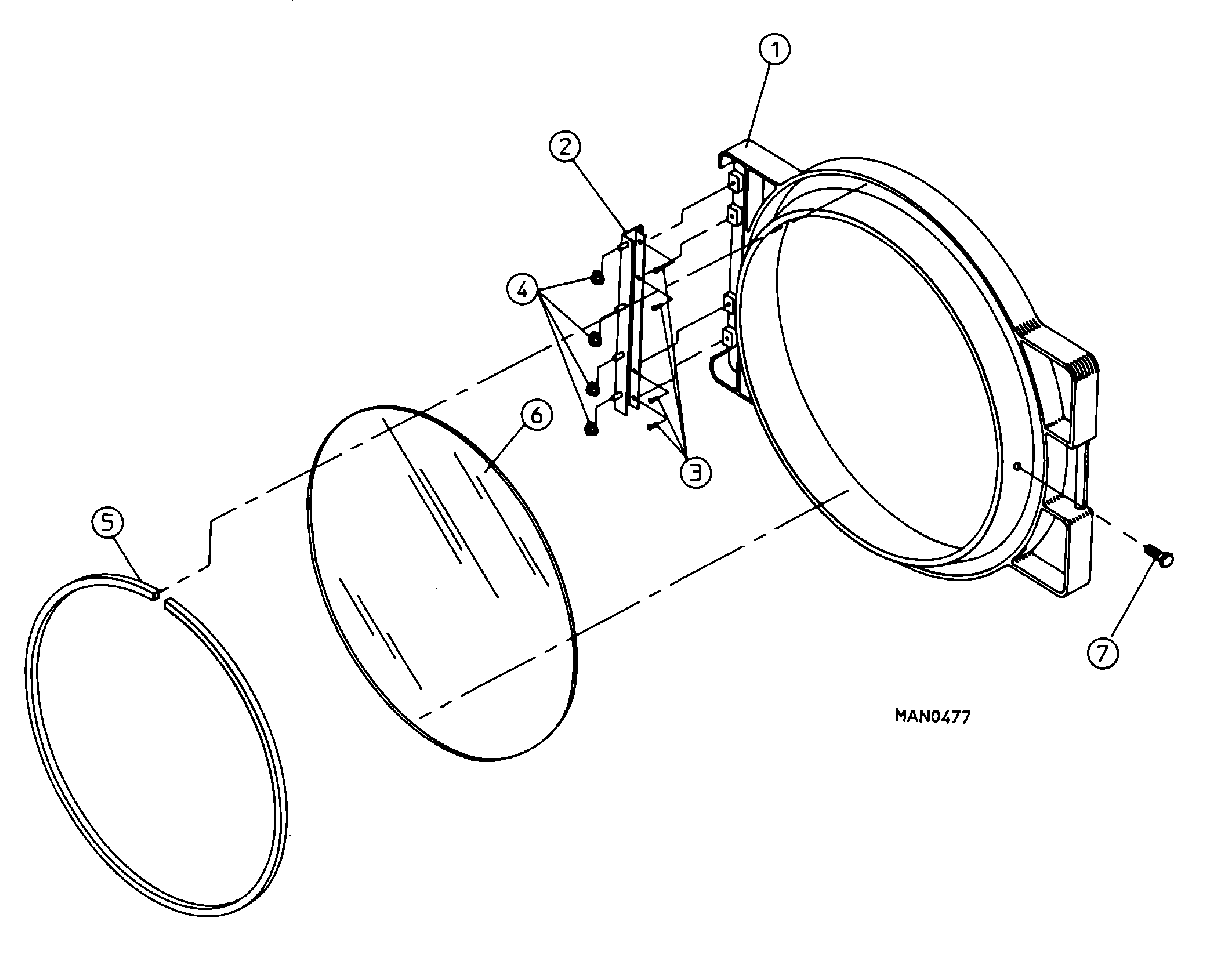

MDG30MC2AL 07 – DOOR ASSEMBLY (MC2)

Written by

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A882963
001	MAY A103062
001	DOOR ASSEMBLY COMPLETE (GRAY) (INCL ITEM No.`S 1 & 5 THRU 9)
002	MAY A800448
003	MAY A150410
004	MAY A152014
005	MAY A102353
005	ADHESIVE, MOUNTING
006	MAY A102210
006	MAY A170730
006	GLASS, DOOR (20-7/16“)
007	MAY A150431
