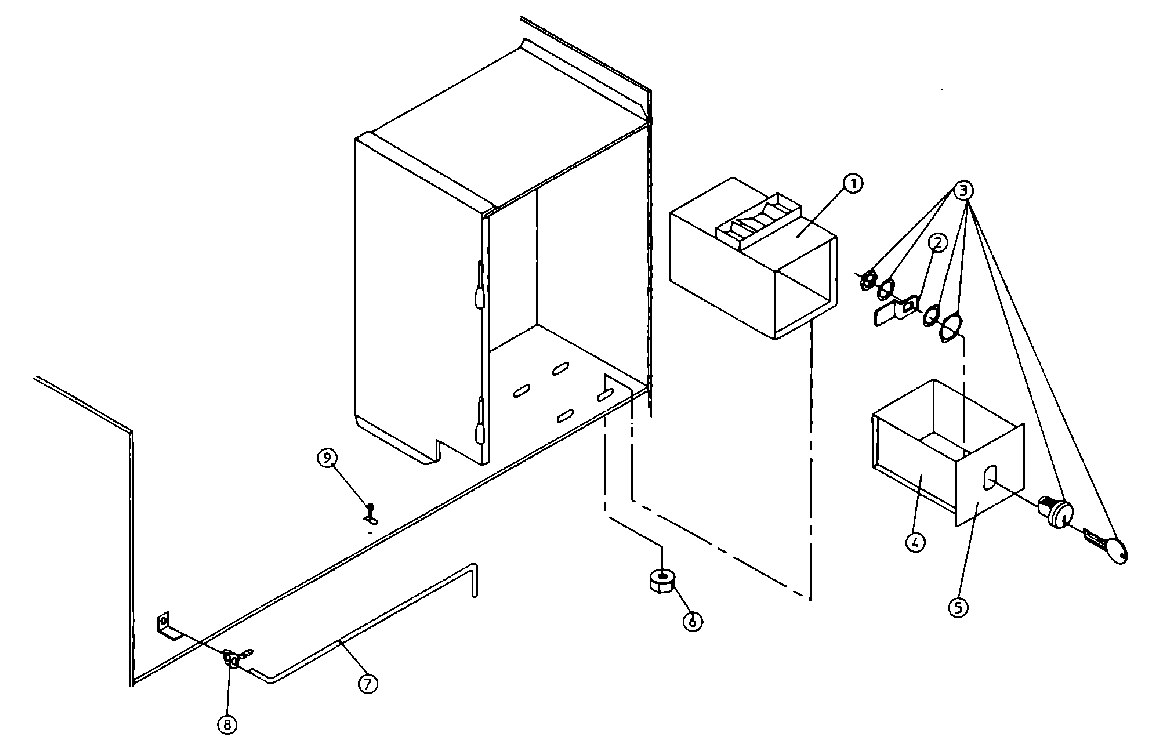

MDG30MC2AL 10 – COIN VAULT ASSEMBLY (MC2)

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A802115
001	VAULT ASSY, MICROPROCESSOR (INCLUDES ITEMS 1-6)(COMPLETE)
002	KEY, MER-PEL (1/4 TURN) (SPECIFY KEY NUMBER)
002	MAY A160028
003	MAY A875061
004	BOX, COIN (W/OUT FACE PLATE)
004	BOX ASSY., COIN (1/4 TURN) (INCLUDES 2, 3, 4 & 5)
004	BOX, COIN (HIGH SECURITY W/KEY
005	PLATE, FACE (1/4 TURN) (COIN BOX)
006	MAY A152014
007	MAY A102502
008	MAY A102601
009	CATCH, CONTROL DOOR ROD
