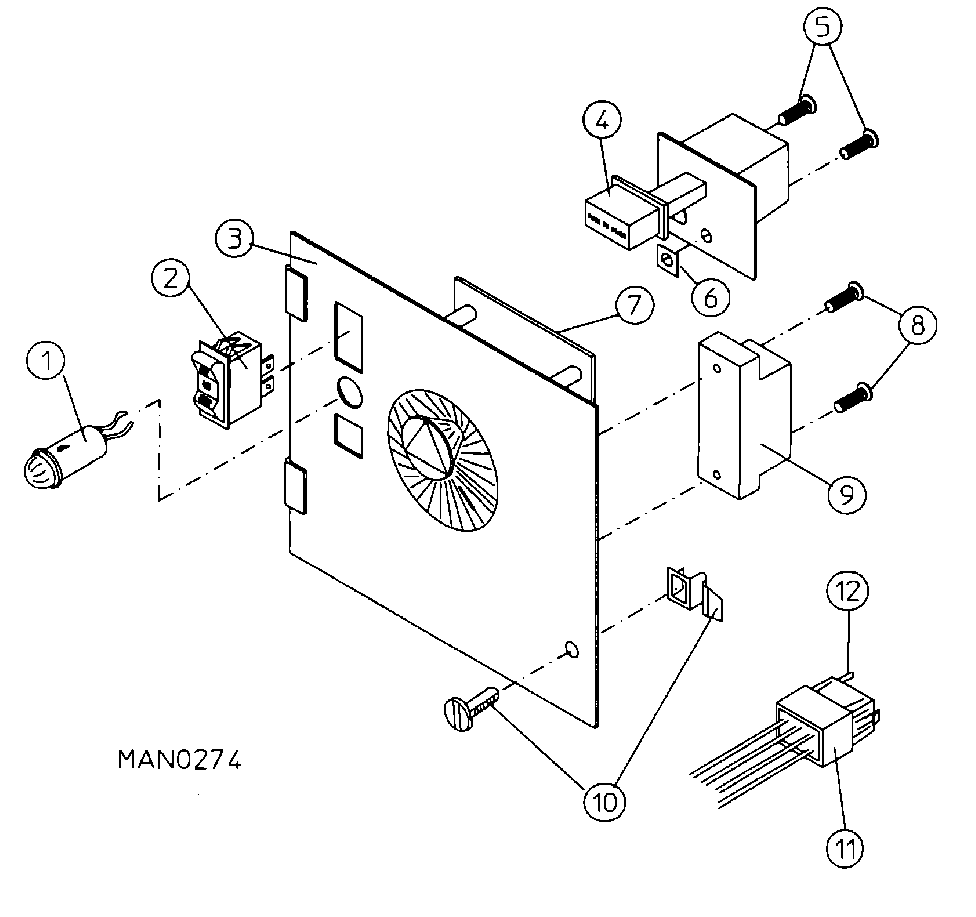

MDG30MC2AQ 01 – CONTROL PANEL ASSEMBLY (MC2)

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A123005
002	MAY A122400
003	MAY A800054
003	CONTROL PANEL ASY. 24V (ASSY INCLUDES 1-6 & 8-12)
004	MAY A131917
005	MAY A150207
006	MAY A154001
007	METER, COIN (25 CENT) (SPECIFY TIMING)
008	MAY A150303
009	MAY A120712
010	MAY A882541
011	MAY A122602
012	MAY A122801
012	MAY A122700
