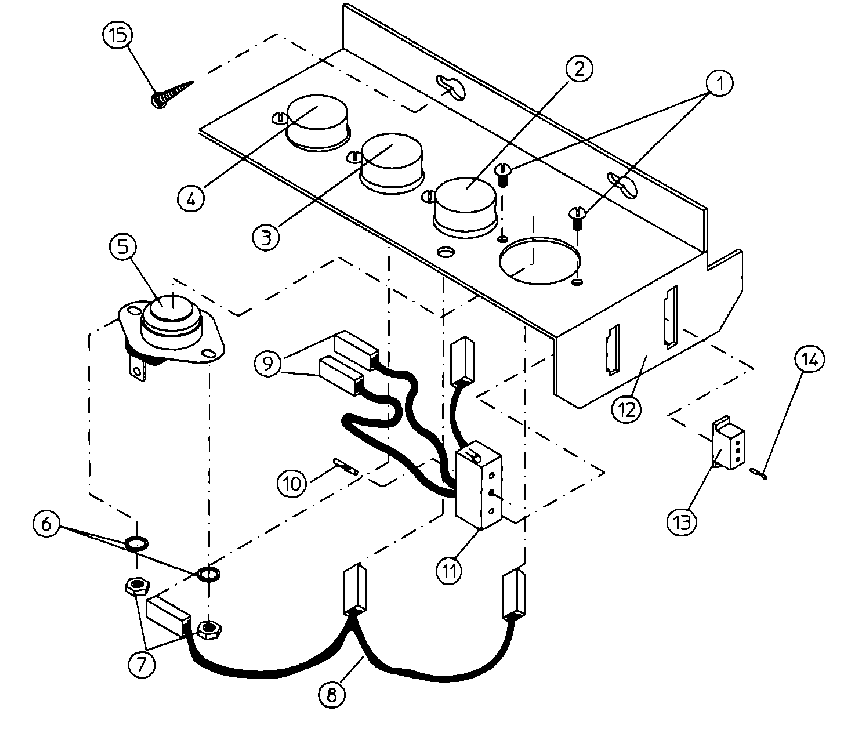

MDG30MC3A 13 – SENSOR BRACKET ASSEMBLY

MDG30MC3A 13 – SENSOR BRACKET ASSEMBLY

Written by

in

MDG30MC3A 13 – SENSOR BRACKET ASSEMBLY

Products

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001SCREW, PHILL (6-32 X 1/4“)RND
003MAY A130100
004MAY A130103
005MAY A130111
006MAY A153010
007MAY A152000
008JUMPER WIRE, SENSOR-4 ONLY
009MAY A121028
010MAY A122701
011MAY A840085
011MAY A122605
012MAY A801430
012MAY A305007
013MAY A122604
014MAY A122700
014MAY A122801
015MAY A150301
