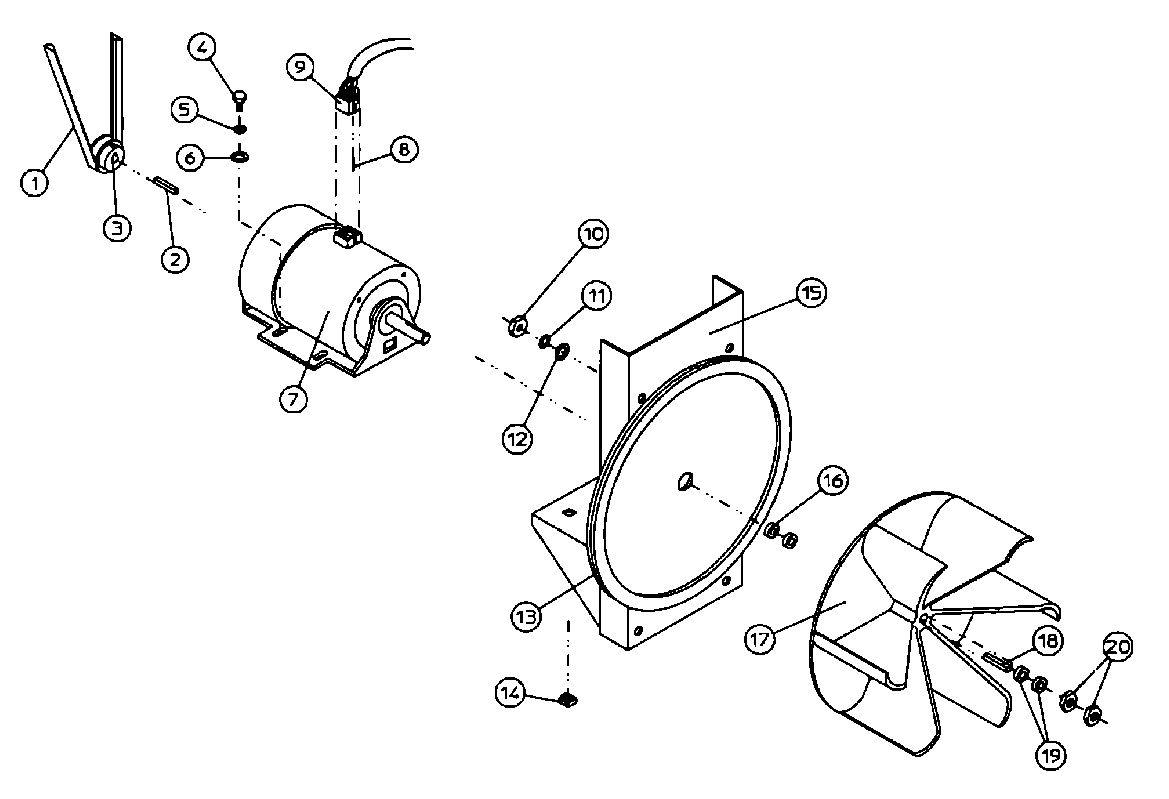

MDG30MC3AL 16 – MOTOR & MOUNT ASSEMBLY

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A100110
002	MAY A100701
003	PULLEY, MOTOR (5/8`` X 2``) (USED ON 1HP. 60HZ MOTORS)
004	MAY A150501
007	MOTOR W/PLUG (1HP, 60HZ, 10 T.E.F.C.)
008	MAY A122701
008	MAY A122801
009	MAY A137030
010	MAY A152004
011	MAY A153002
012	MAY A153001
013	MAY A117600
014	MAY A154000
015	MAY A800919
015	MOUNT, MOTOR W/PLUG (1HP, 115V, 60HZ, 10, T.E.F.C.
016	MAY A153051
017	MAY A100603
018	MAY A100702
019	WASHER, FLAT (1/2``) QUANTITY AS REQUIRED
020	MAY A152006
