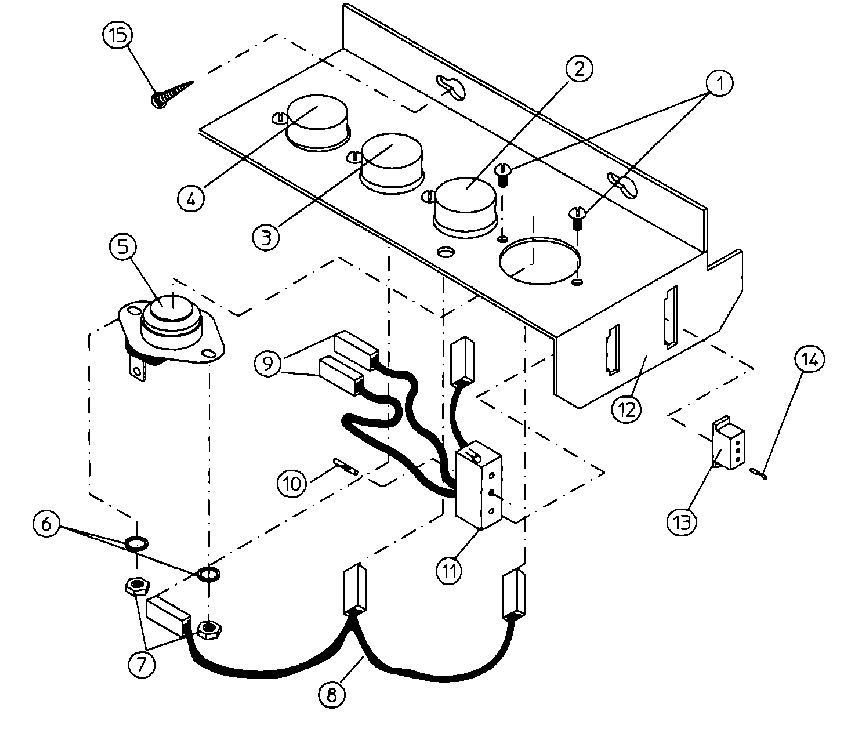

MDG30MC3AW 13 – SENSOR BRACKET ASSEMBLY
Written by
in
MDG30MC3AW 13 – SENSOR BRACKET ASSEMBLY
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | SCREW, PHILL (6-32 X 1/4“)RND |
| 003 | MAY A130100 |
| 004 | MAY A130103 |
| 005 | MAY A130111 |
| 006 | MAY A153010 |
| 007 | MAY A152000 |
| 008 | JUMPER WIRE, SENSOR-4 ONLY |
| 009 | MAY A121028 |
| 010 | MAY A122701 |
| 011 | MAY A840085 |
| 011 | MAY A122605 |
| 012 | MAY A801430 |
| 012 | MAY A305007 |
| 013 | MAY A122604 |
| 014 | MAY A122700 |
| 014 | MAY A122801 |
| 015 | MAY A150301 |
