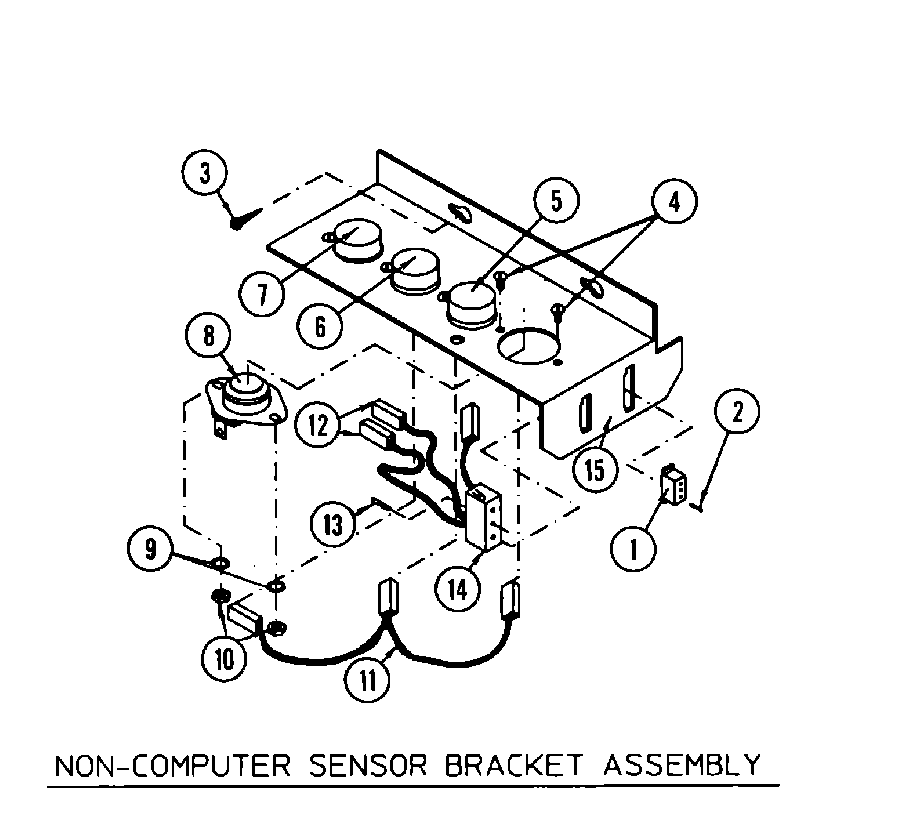

MDG30MNAWW 13 – SENSOR BRACKET ASSEMBLY

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A122604
002	MAY A122700
003	MAY A150301
004	SCREW, PHILL (6-32 X 1/4“)RND
005	MAY A130101
006	MAY A130100
007	MAY A130111
008	MAY A130301
009	MAY A153010
010	MAY A152000
011	JUMPER WIRE, SENSOR-4 ONLY
012	MAY A121028
013	MAY A122701
014	MAY A840062
014	MAY A122605
015	MAY A305007
015	SENSOR BRKT ASSY -4 T-STAT (INCLS No.22,23 & 24)
