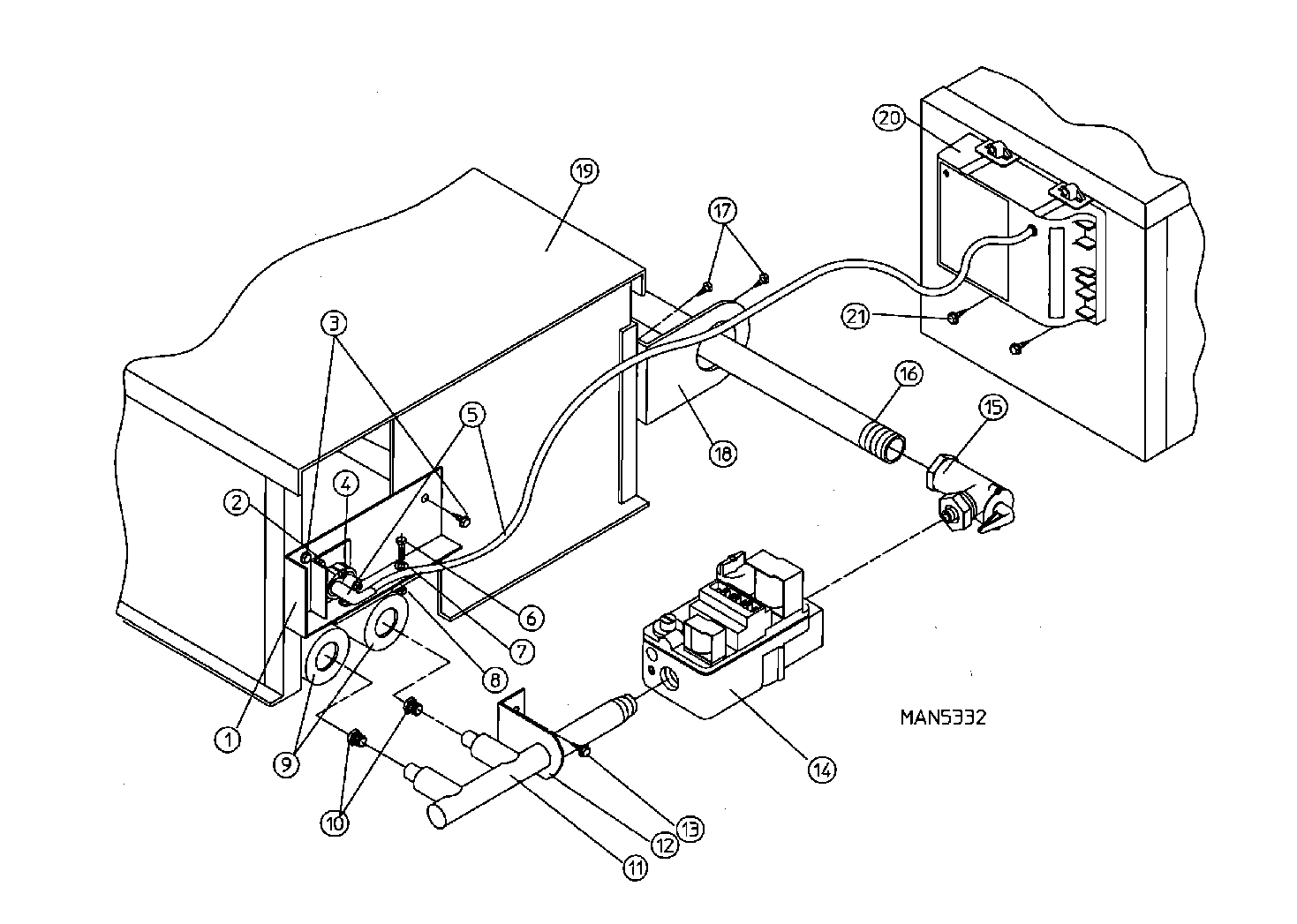

MDG30MNAWW 14 – IGNITION & BURNER ASSEMBLY

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A318030
003	MAY A150415
004	MAY A880134
004	MAY A128915
005	CONNECTOR ASSEMBLY W/HV WIRE
006	MAY A150103
007	MAY A153000
008	MAY A151001
009	MAY A141105
010	MAY A140819
010	MAY A140806
011	MAY A141230
013	MAY A150300
014	VALVE,GAS 1/2`` 24 VAC,(LP)
014	MAY A128927
014	MAY A140411
015	MAY A141305
016	MAY A142800
016	MAY A142707
016	MAY A142809
016	MAY A142500
016	MAY A142600
017	BODY, UNION SHUT-OFF
018	MAY A318700
019	BURNER ASSY. COMPLETE (ORIFICES NOT INCLUDED)
019	MAY A850851
019	BURNER ASSY. COMPLETE (LP) (ORIFICES NOT INCLUDED)
020	MODULE, DSI
021	MAY A150299
022	MAY A874050
023	MAY A410001
