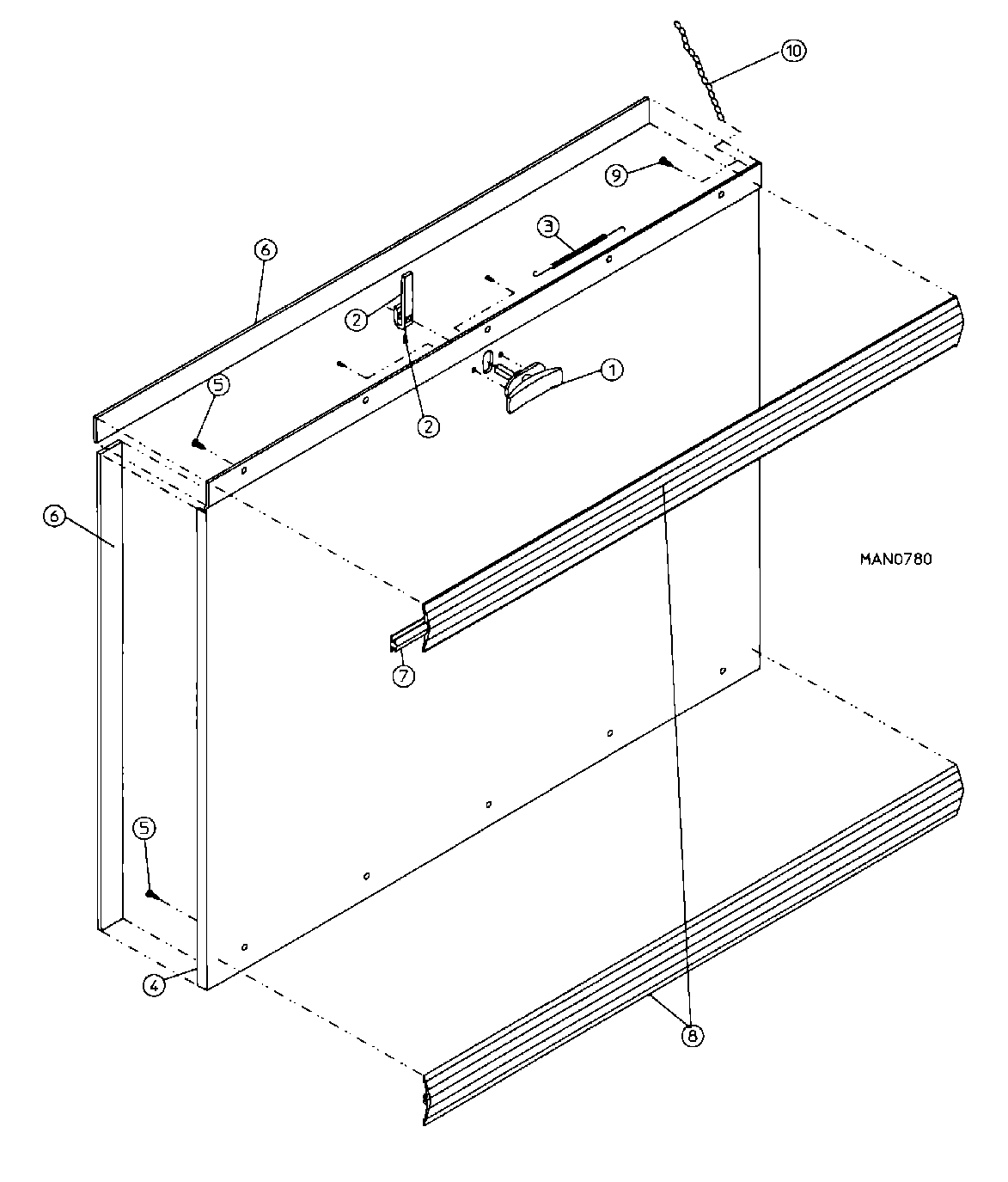

MDG30PC2AQ 09 – CABINET – LINT DOOR ASSEMBLY (PC2)

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A160103
001	LOCK ASSY. W/KEY
001	KEY, DUMMY LOCK (M/K-100)
002	MAY A150425
002	MAY A160008
003	MAY A157000
004	MAY A800233
004	MAY A800216
005	MAY A150201
006	MAY A117604
007	MAY A102307
008	TOP TRIM STRIP W/LOCK HOLE (38-1/4`` LENGTH)
009	MAY A150419
009	MAY A150418
010	MAY A108120
