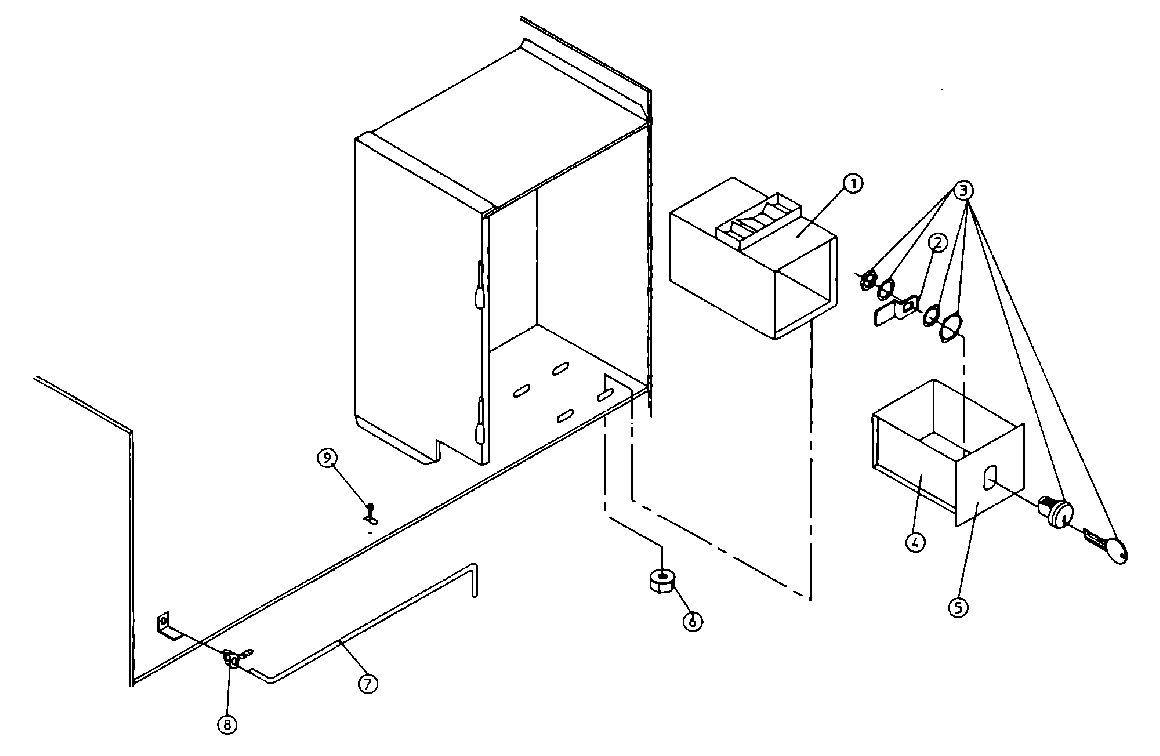

MDG30PC2AW 03 – COIN VAULT ASSEMBLY (PC2)admin2025-04-26T10:11:32+00:00MDG30PC2AW 03 – COIN VAULT ASSEMBLY (PC2)
Products
| Position | Product |
|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A802117 |
| 001 | COIN VAULT, MICROPROCESSOR (INCLUDES 1, 2, 3, 4, 5 & 6) |
| 002 | MAY A160028 |
| 002 | KEY, MER-PEL (1/4 TURN) (SPECIFY KEY NUMBER) |
| 003 | MAY A875061 |
| 004 | BOX, COIN (HIGH SECURITY W/KEY |
| 004 | BOX, COIN (W/OUT FACE PLATE) |
| 004 | BOX ASSY., COIN (1/4 TURN) (INCLUDES 2, 3, 4 & 5) |
| 005 | PLATE, FACE (1/4 TURN) (COIN BOX) |
| 006 | MAY A152014 |
| 007 | MAY A102502 |
| 008 | MAY A102601 |
| 009 | CATCH, CONTROL DOOR ROD |
