MDG30PC2AW 04 – SENSOR BRACKET ASSY. (MICRO & NON COMP)

MDG30PC2AW 04 – SENSOR BRACKET ASSY. (MICRO & NON COMP)

Written by

in

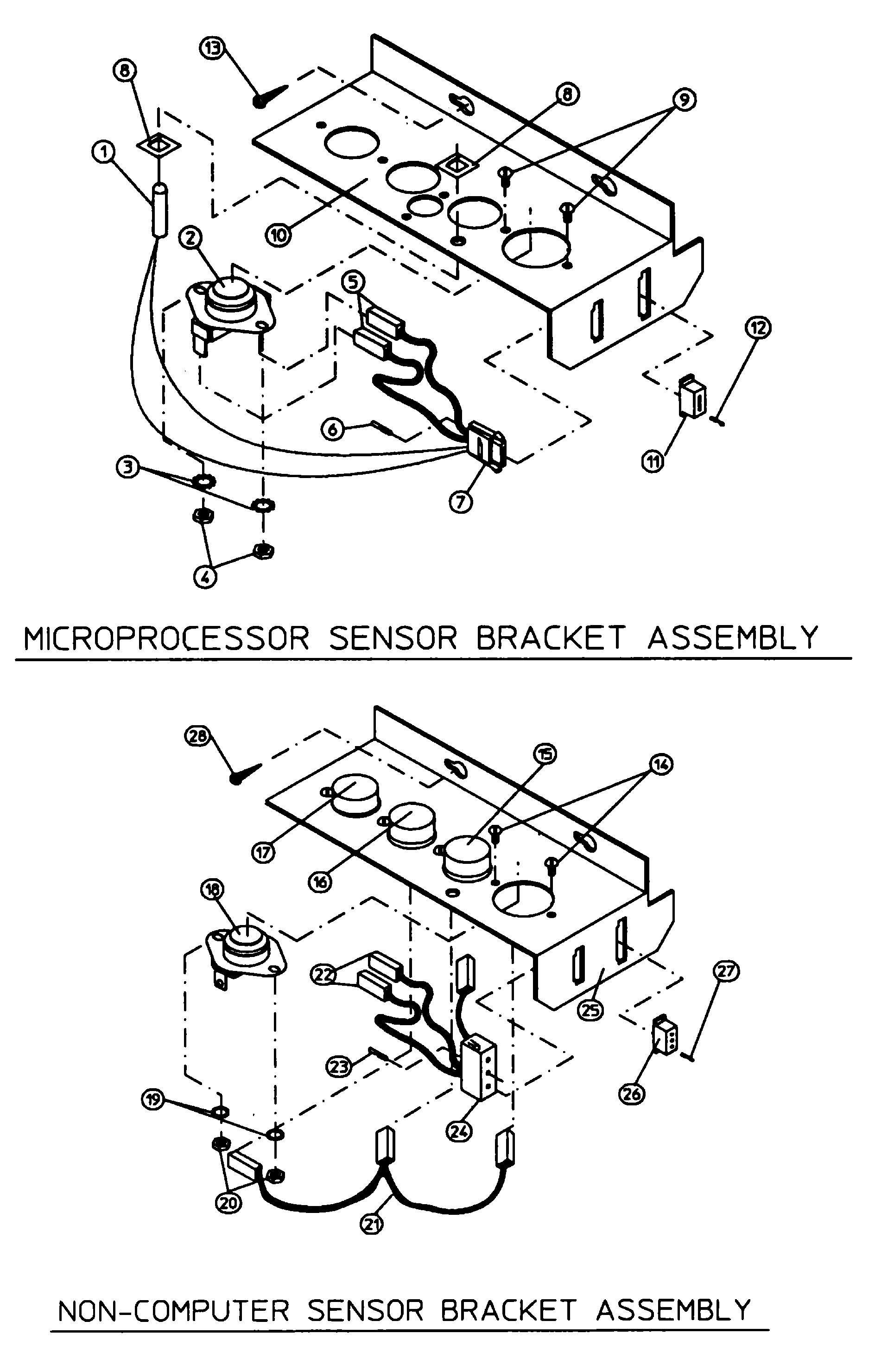

MDG30PC2AW 04 – SENSOR BRACKET ASSY. (MICRO & NON COMP)

Products

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001PROBE ASSY., TEMP. (1/4“)
008MAY A154007
010SENSOR BRACKET ASY.
014SCREW, PHILL (6-32 X 1/4“)RND
015MAY A130100
016MAY A130103
017MAY A130106
018MAY A130111
019MAY A153010
020MAY A152000
021MAY A801430
022JUMPER WIRE, SENSOR-4 ONLY
023MAY A121028
024MAY A122701
025MAY A122605
025MAY A305007
025MAY A840085
026MAY A122604
027MAY A122700
027MAY A122801
028MAY A150301
