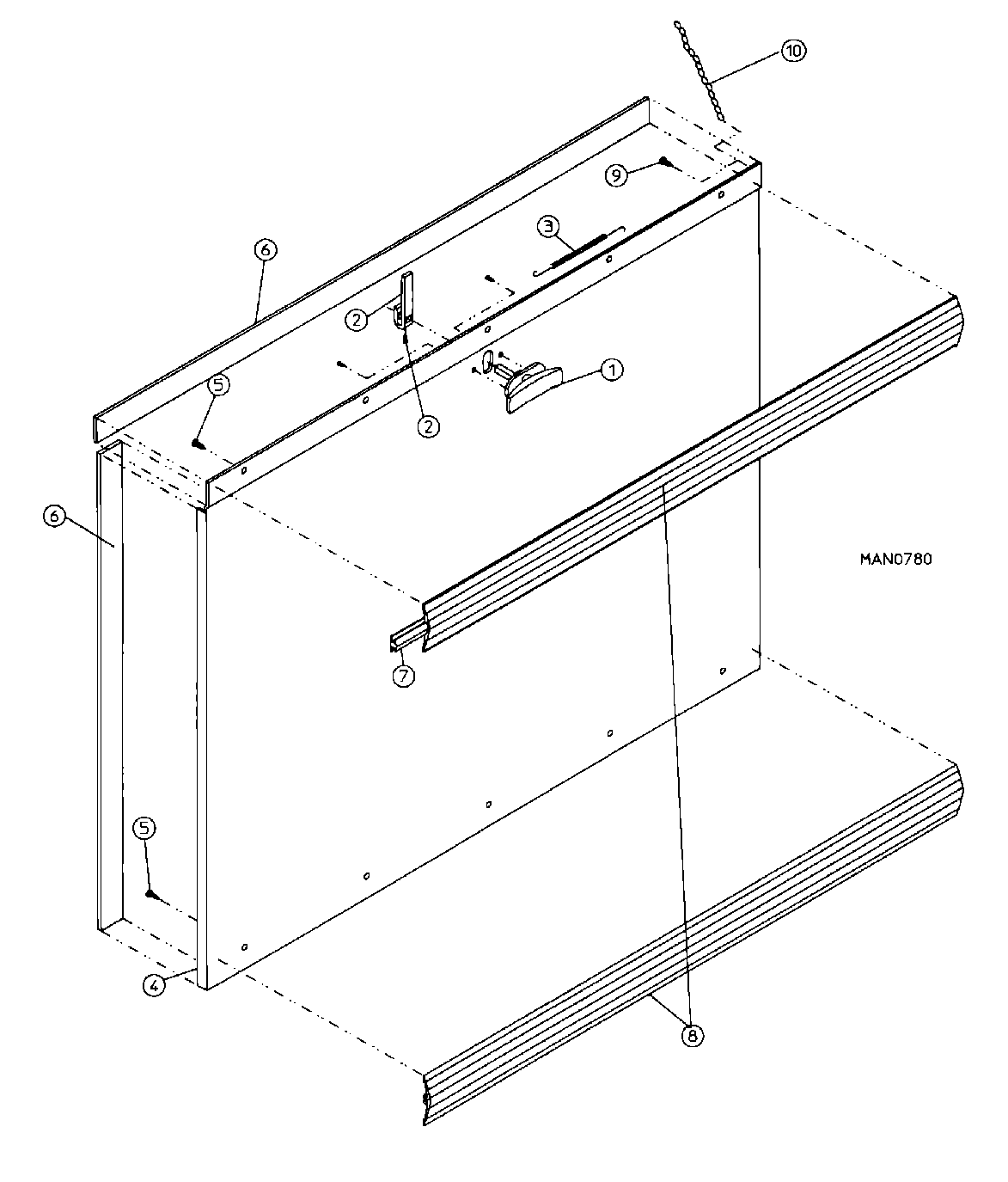

MDG30PC2AW 09 – CABINET – LINT DOOR ASSEMBLY (PC2)

Products

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001MAY A160103
001LOCK ASSY. W/KEY
001KEY, DUMMY LOCK (M/K-100)
002MAY A150425
002MAY A160008
003MAY A157000
004MAY A800233
004MAY A800216
005MAY A150201
006MAY A117604
007MAY A102307
008TOP TRIM STRIP W/LOCK HOLE (38-1/4“ LENGTH)
009MAY A150419
009MAY A150418
010MAY A108120
