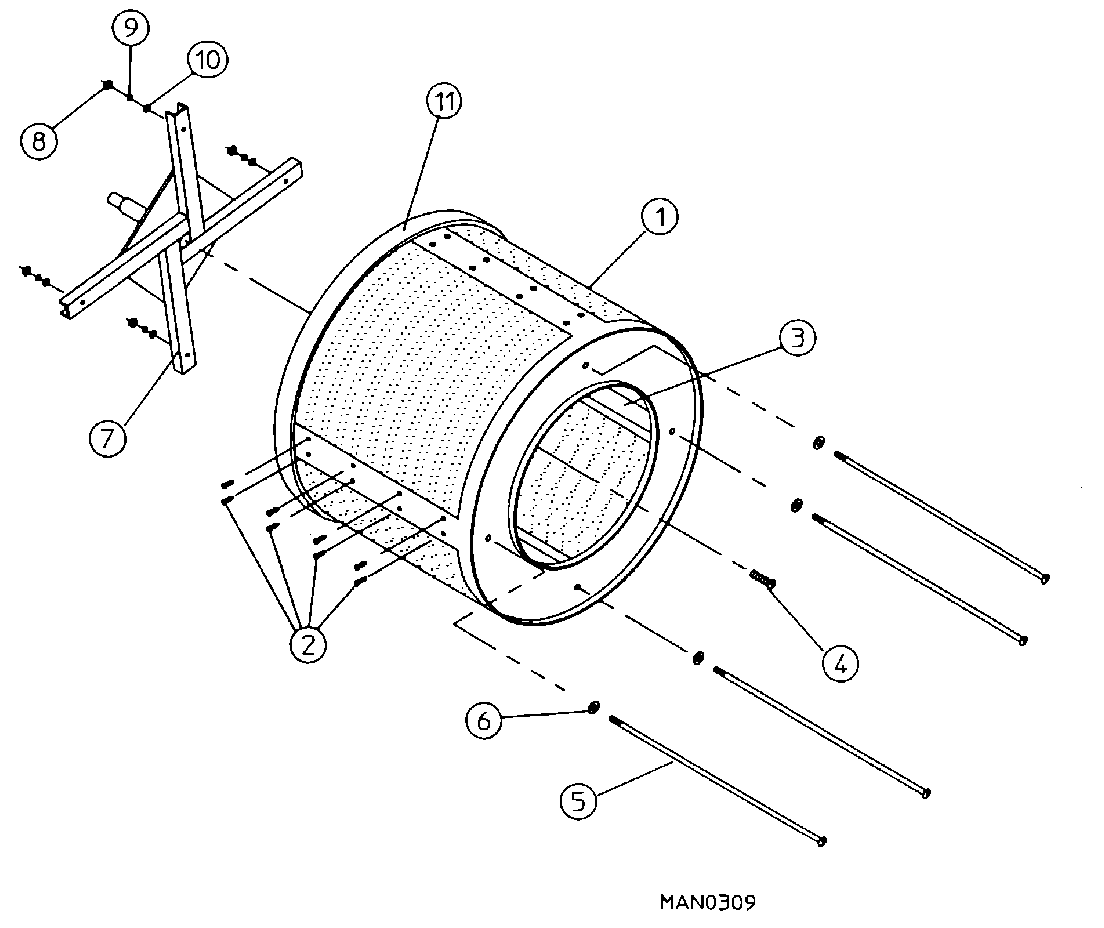

MDG30PC2Ax 04 – TUMBLER & SUPPORT ASSEMBLY
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A800803 |
| 001 | MAY A800703 |
| 002 | MAY A150415 |
| 003 | MAY A301304 |
| 004 | MAY A150518 |
| 005 | MAY A100902 |
| 007 | MAY A800603 |
| 008 | MAY A152004 |
| 009 | MAY A153002 |
| 010 | MAY A153001 |
| 011 | MAY A401010 |
| 011 | MAY A116002 |
