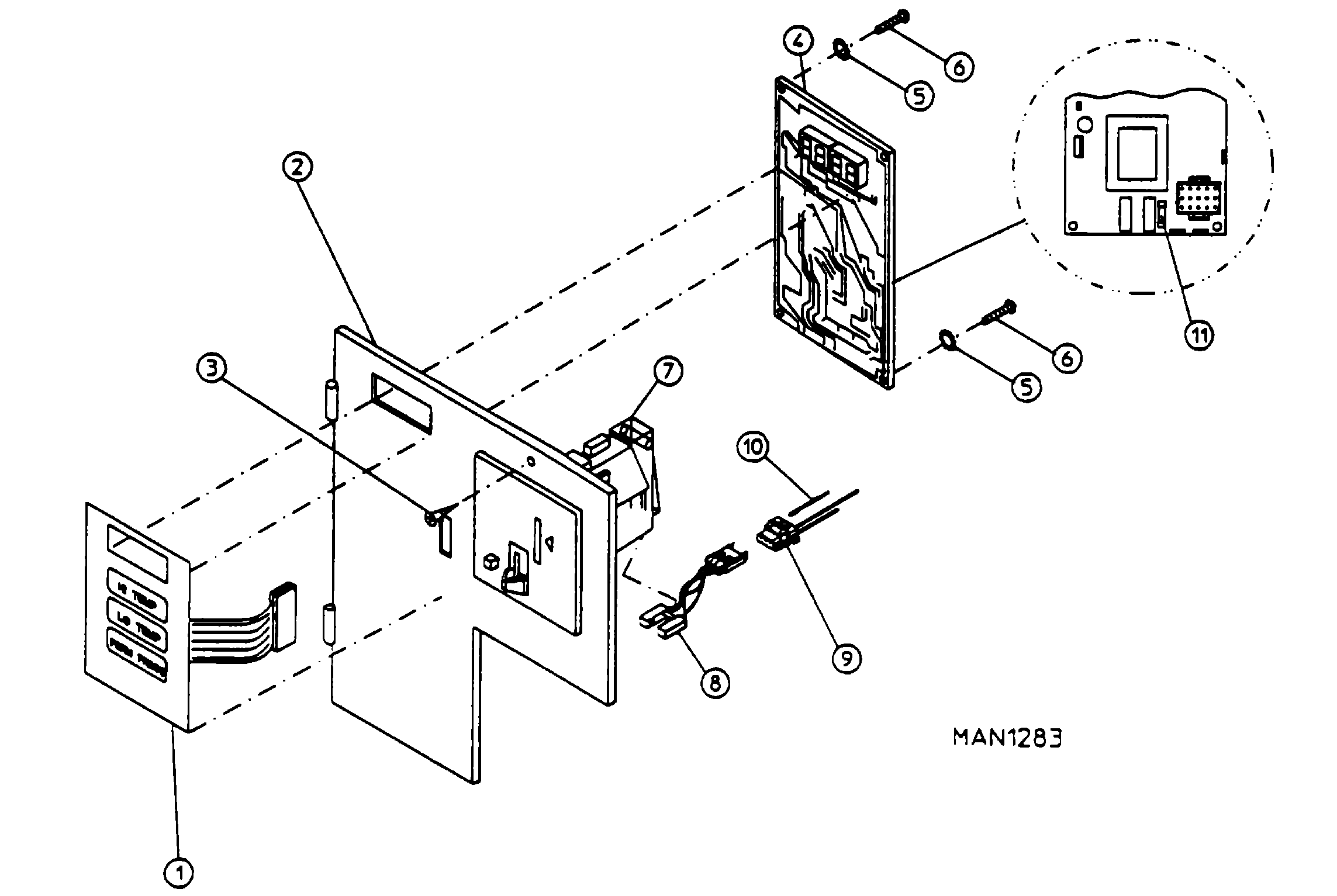

MDG30PC3AL 01 – CONTROL PANEL ASSEMBLY (PC3)

Products

Position	Product
001	MAY A112526
001	PANEL, CONTROL (COMPLETE) (INCLUDES 1, 2, 4, 5 & 6)
001	PANEL, CONTROL (COMPLETE) (W/BATTERY OPT…INCLUDES 1,
002	PANEL, CONTROL (COIN)
002	PANEL, CONTROL (W/BATT. BRKT) (W/BATTERY BRACKET)
003	SCREW, CRIMPTITE
004	HARNESS, CLIP (9V BATTERY)
004	CONTROLLER (PHASE 5 COIN)
005	MAY A153010
006	SCREW, PHILL (6-32 X 1/4“)RND
007	MAY A125100
008	MAY A137056
009	MAY A137023
010	MAY A880772
010	MAY A137021
011	FUSE, 1/8 AMP (SLO BLO)
012	MAY A122800
013	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
