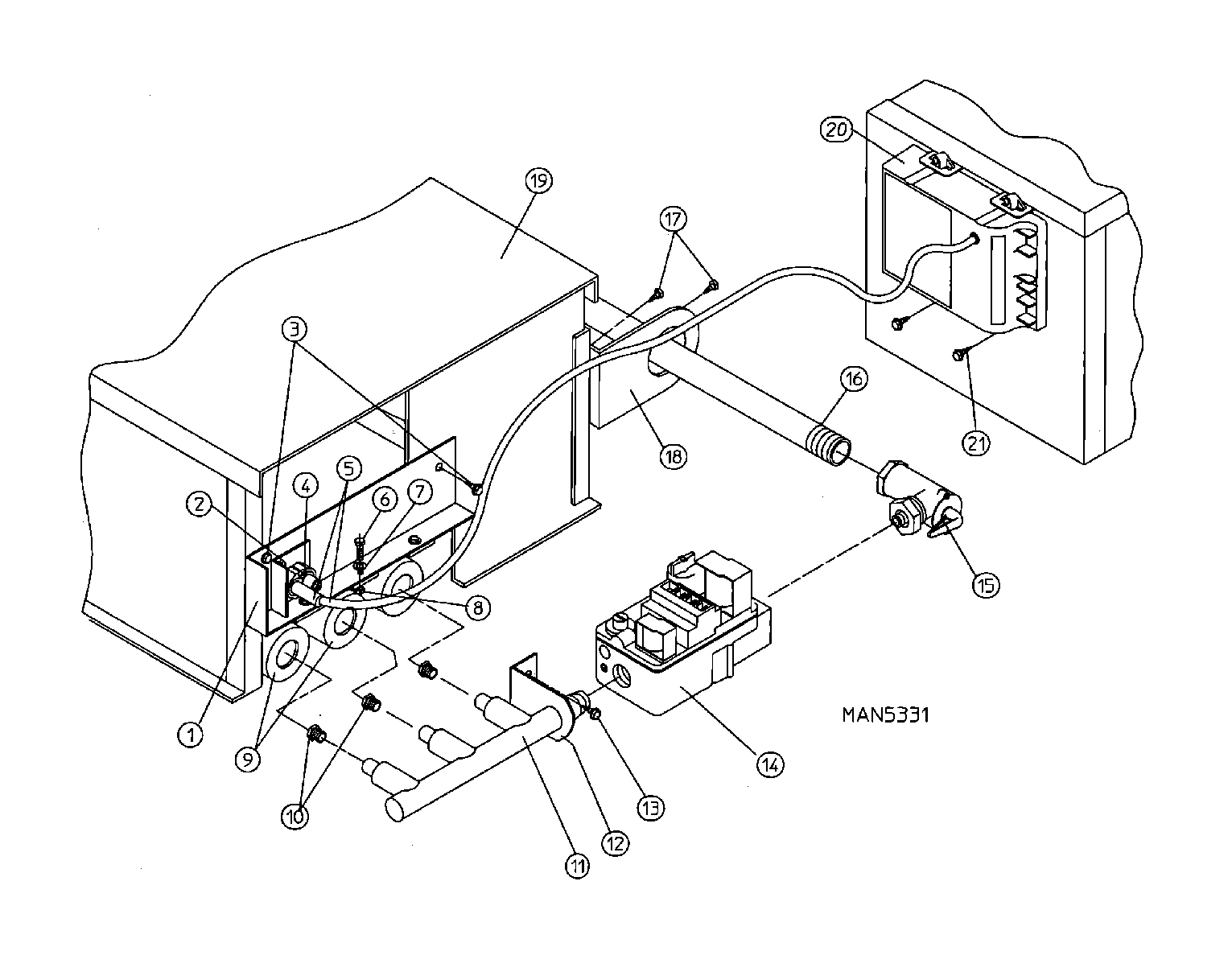

MDG30PC3AL 16 – DSI & BURNER ASSEMBLY
Written by
in
MDG30PC3AL 16 – DSI & BURNER ASSEMBLY
Products
| Position | Product |
|---|---|
| 001 | MAY A318030 |
| 004 | MAY A880134 |
| 005 | CONNECTOR ASSEMBLY W/HV WIRE |
| 006 | MAY A150103 |
| 007 | MAY A153000 |
| 008 | MAY A151001 |
| 009 | MAY A141105 |
| 010 | MAY A140808 |
| 010 | MAY A140823 |
| 011 | MAY A141232 |
| 013 | MAY A150300 |
| 014 | MAY A128927 |
| 015 | BODY, UNION SHUT-OFF |
| 016 | MAY A142707 |
| 016 | MAY A142800 |
| 016 | MAY A142809 |
| 016 | MAY A142600 |
| 016 | MAY A142500 |
| 017 | SCREW, CRIMPTITE |
| 018 | MAY A318700 |
| 019 | MAY A850852 |
| 019 | MAY A809628 |
| 019 | MAY A809627 |
| 020 | MODULE, DSI |
| 021 | MAY A150299 |
| 022 | MAY A140411 |
| 023 | MAY A410001 |
| 028 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
