MDG30PC3AW 09 – DOOR ASSEMBLY
Written by
in

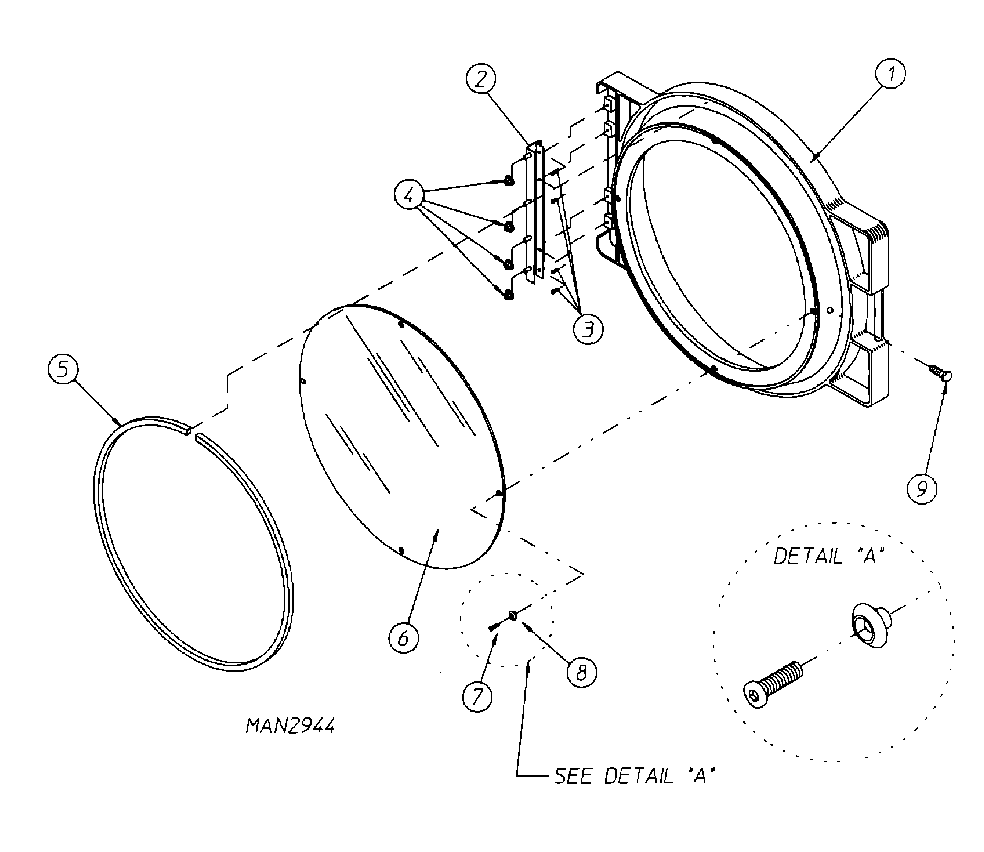

MDG30PC3AW 09 – DOOR ASSEMBLY
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A882963 |
| 001 | MAY A881427 |
| 001 | MAY A881423 |
| 001 | MAY A103062 |
| 002 | MAY A800448 |
| 003 | SCREW, CRIMPTITE |
| 004 | MAY A152014 |
| 005 | GASKET, DOOR (69 1/2“) |
| 006 | MAY A170730 |
| 006 | GLASS, DOOR (20-7/16“) |
| 007 | MAY A150431 |
