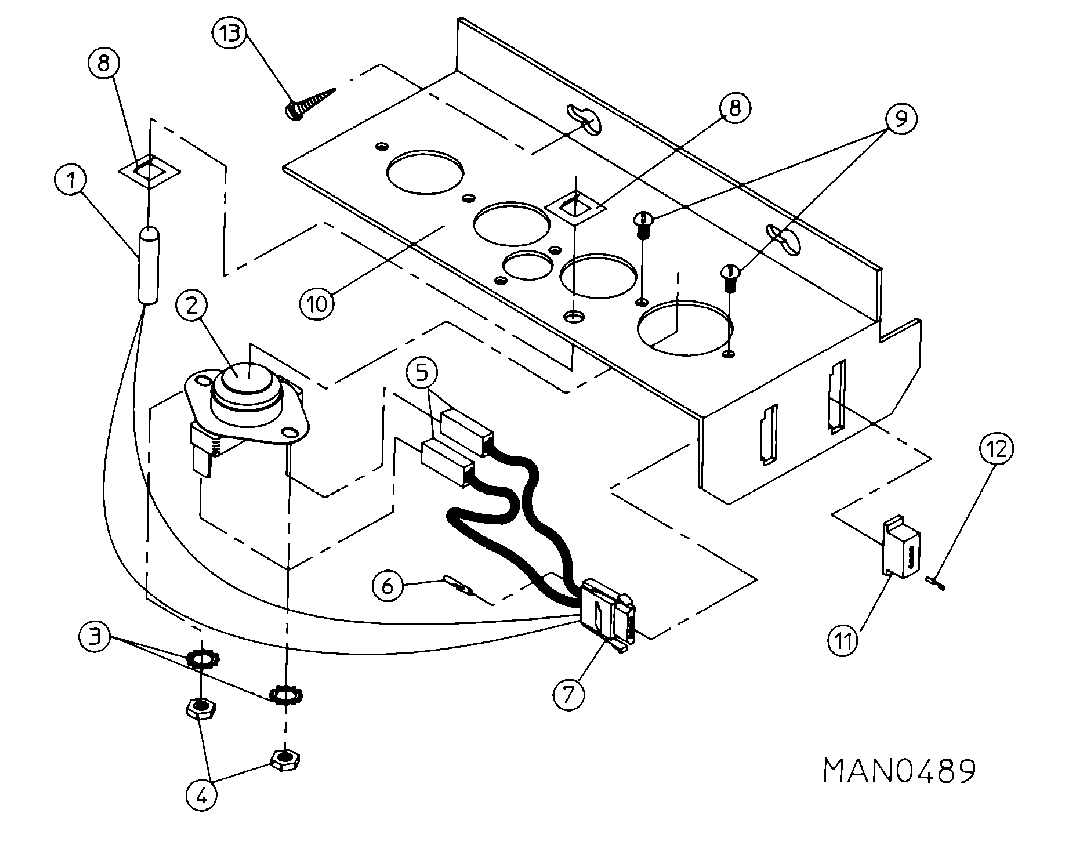

MDG30PC3AW 13 – SENSOR BRACKET ASSEMBLY

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	PROBE ASSY., TEMP. (1/4“)
002	MAY A130301
003	MAY A153010
004	MAY A152000
005	MAY A121028
006	MAY A122701
007	MAY A122605
007	MAY A122801
008	MAY A154007
009	SCREW, PHILL (6-32 X 1/4“)RND
010	MAY A305007
010	SENSOR BRACKET ASY.
011	MAY A122604
012	MAY A122700
013	MAY A150301
