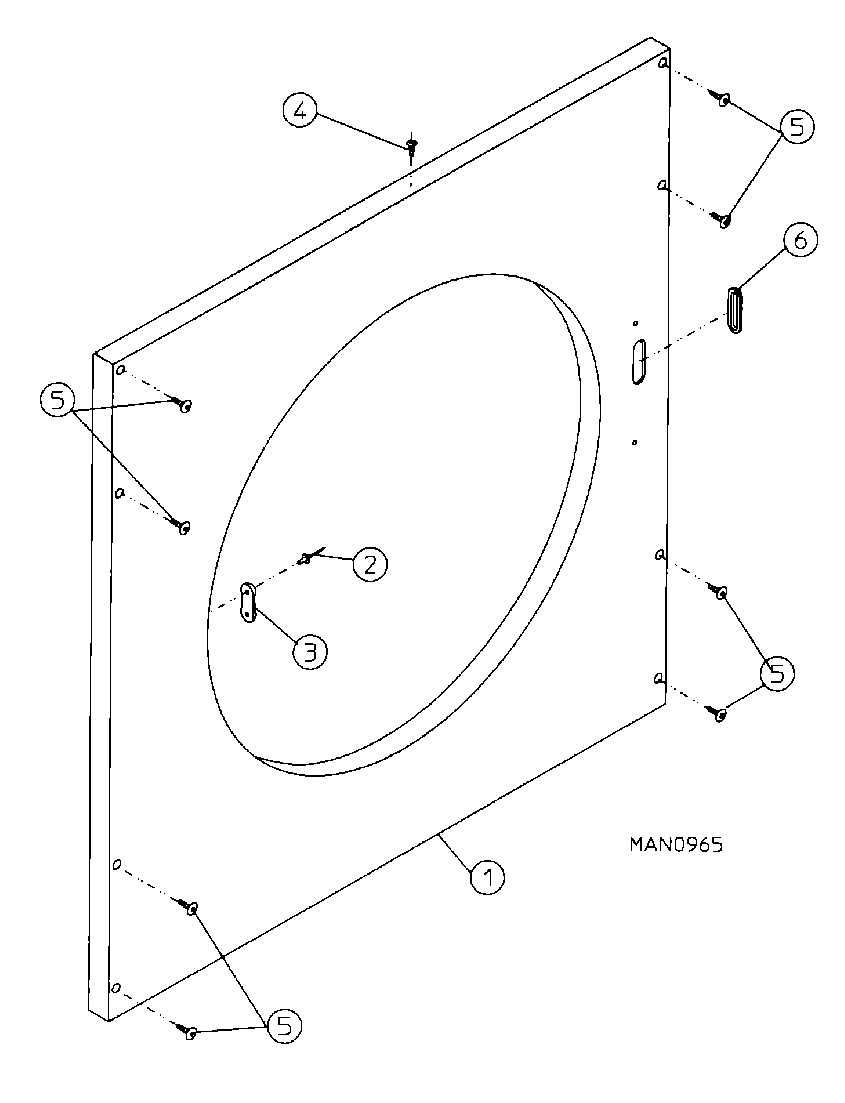

MDG30PN3AL 07 – CABINET – FRONT PANEL ASSEMBLY

Written by

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A875300
002	MAY A154215
003	MAY A170330
004	MAY A150300
005	SCREW, CRIMPTITE
006	GROMMET, RUBBER
