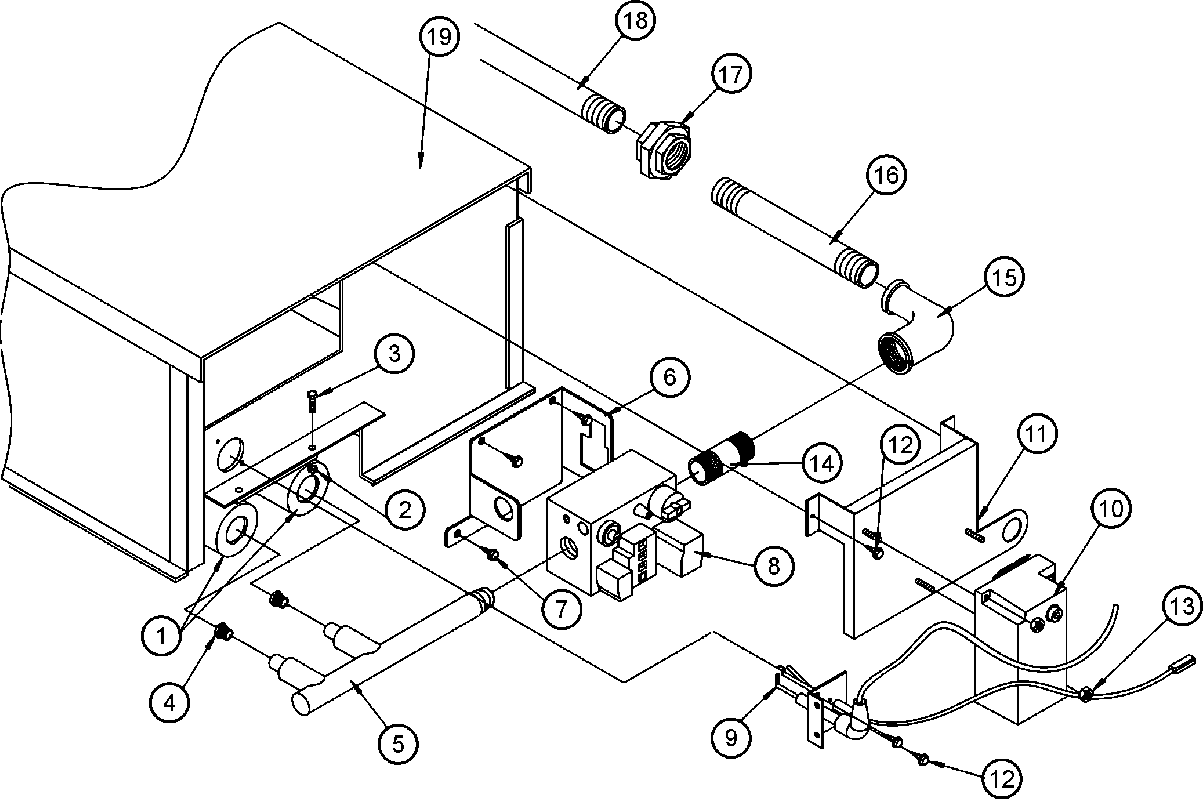

MDG30PNVWQ 13 – GAS BURNER
Products
| Position | Product |
|---|---|
| 000 | ORDER PART FROM AMERICAN DRYER No.508-678-9000 |
| 001 | MAY A141105 |
| 002 | MAY A151001 |
| 003 | MAY A150108 |
| 004 | ORIFICE, BURNER (NAT) |
| 004 | MAY A140806 |
| 005 | MAY A141230 |
| 006 | MAY A318714 |
| 007 | SCREW, CRIMPTITE |
| 008 | MAY A128927 |
| 008 | VALVE,GAS 1/2`` 24 VAC,(LP) |
| 009 | MAY A809307 |
| 010 | MAY A801048 |
| 011 | MAY A810030 |
| 012 | MAY A150300 |
| 013 | MAY A152013 |
| 014 | MAY A142700 |
| 015 | MAY A142500 |
| 016 | MAY A142800 |
| 017 | MAY A142600 |
| 018 | MAY A142818 |
| 019 | MAY A817060 |
| 019 | MAY A817061 |
| 019 | MAY A850858 |
| 019 | MAY A883321 |
