MDG32PC2 09 – CONTROL PANEL ASSEMBLY (DMC)
Written by
in

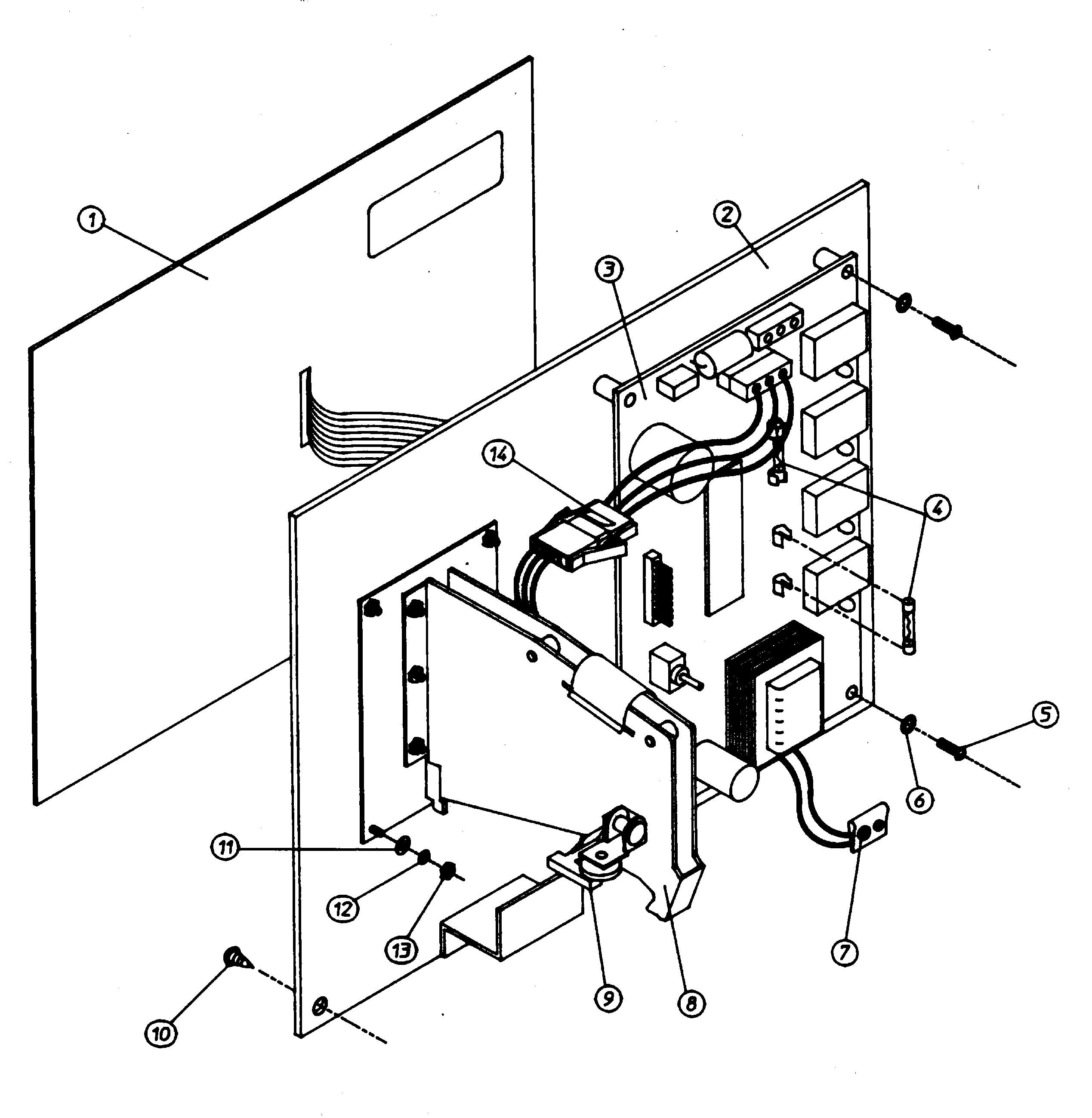

MDG32PC2 09 – CONTROL PANEL ASSEMBLY (DMC)
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A112540 |
| 002 | MAY A824007 |
| 002 | MAY A801266 |
| 002 | MAY A801231 |
| 003 | MAY A137240 |
| 004 | MAY A136058 |
| 005 | SCREW, PHILL (6-32 X 1/4“)RND |
| 006 | MAY A153010 |
| 007 | HARNESS, CLIP (9V BATTERY) |
| 008 | MAY A125150 |
| 009 | MAY A137056 |
| 010 | MAY A130301 |
| 011 | MAY A153046 |
| 012 | MAY A153045 |
| 013 | MAY A152016 |
| 014 | MAY A824867 |
