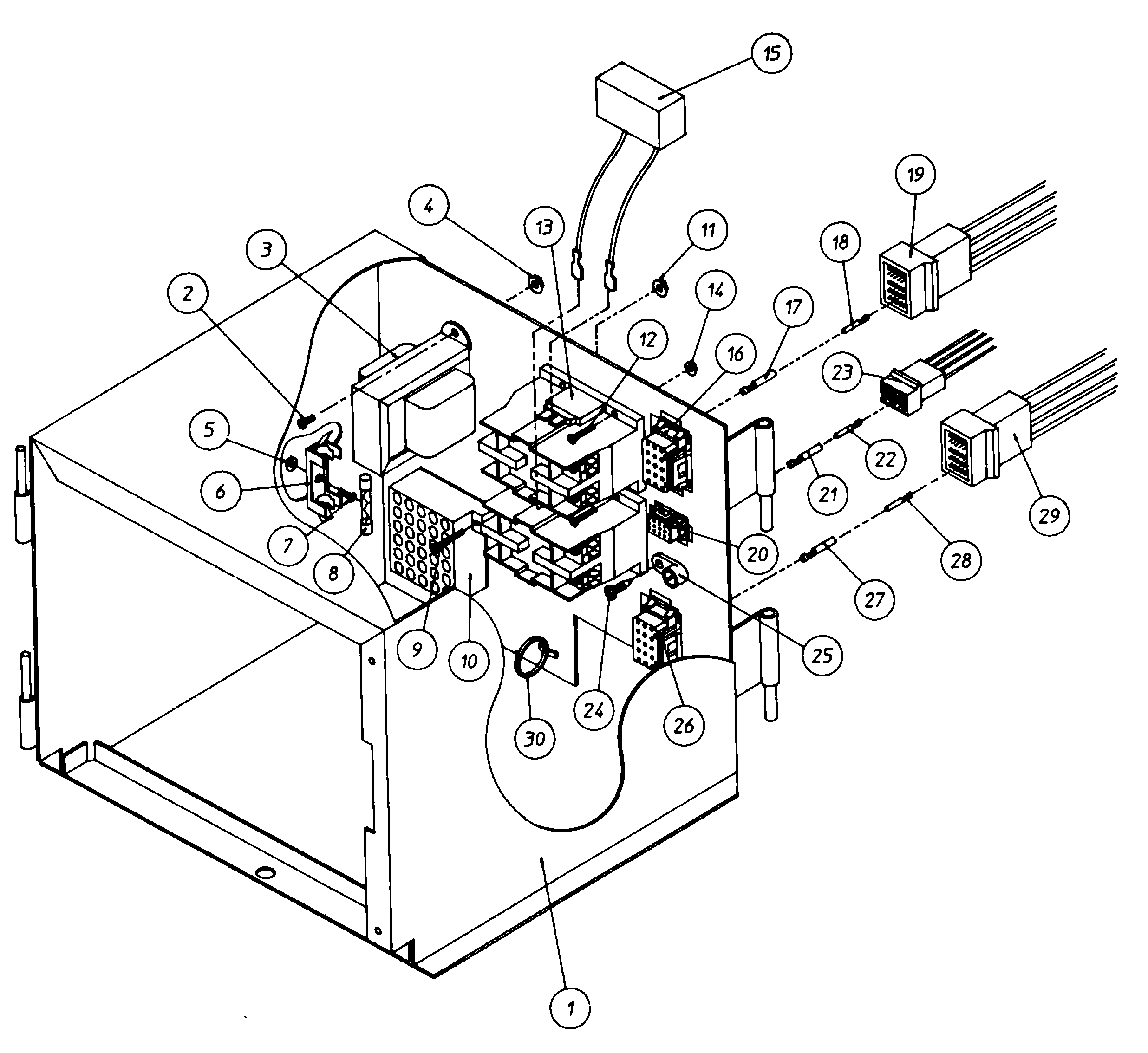

MDG32PC2 10 – CONTROL BOX ASSEMBLY (DMC)
Written by
in
MDG32PC2 10 – CONTROL BOX ASSEMBLY (DMC)
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A824440 |
| 003 | MAY A141403 |
| 006 | MAY A136008 |
| 008 | MAY A136057 |
| 009 | MAY A150002 |
| 010 | MAY A120715 |
| 011 | MAY A151000 |
| 012 | MAY A150103 |
| 013 | MAY A132451 |
| 014 | MAY A151001 |
| 015 | MAY A824828 |
| 020 | MAY A122631 |
| 023 | MAY A122630 |
| 024 | MAY A150415 |
| 025 | MAY A121010 |
| 026 | MAY A122626 |
| 027 | MAY A122705 |
| 028 | MAY A122704 |
| 029 | MAY A137025 |
| 029 | MAY A122625 |
| 030 | DOWEL PIN FOR HANDLE |
| 031 | MAY A122801 |
| 032 | MAY A122800 |
