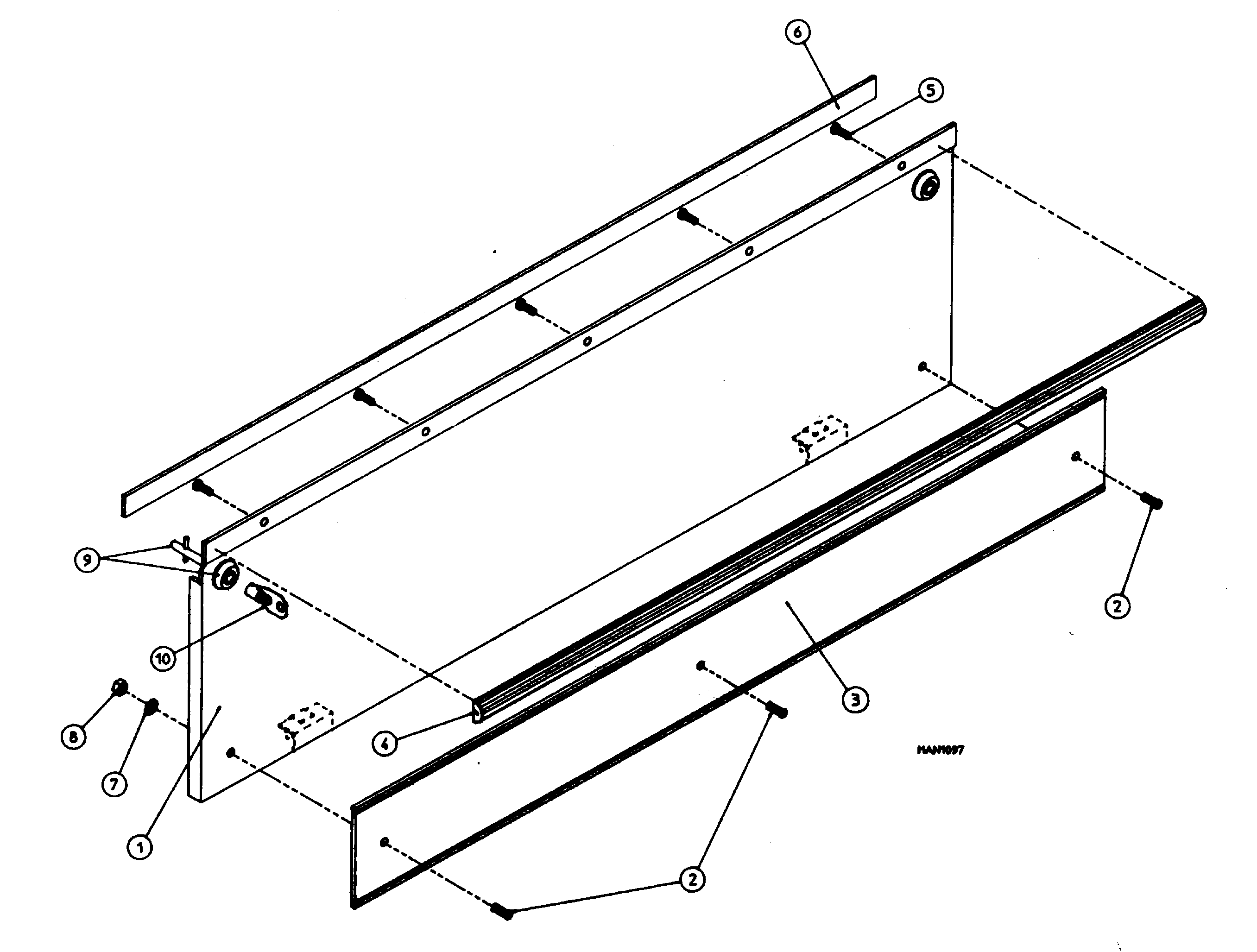

MDG32PC2AL 02 – CABINET – LINT DOOR ASSEMBLY
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A880173 |
| 002 | MAY A150001 |
| 003 | MAY A180227 |
| 004 | MAY A180225 |
| 005 | MAY A150201 |
| 006 | TAPE, NOISE SUPPRESSOR |
| 007 | MAY A153010 |
| 008 | MAY A152013 |
| 009 | MAY A160040 |
| 010 | MAY A160140 |
