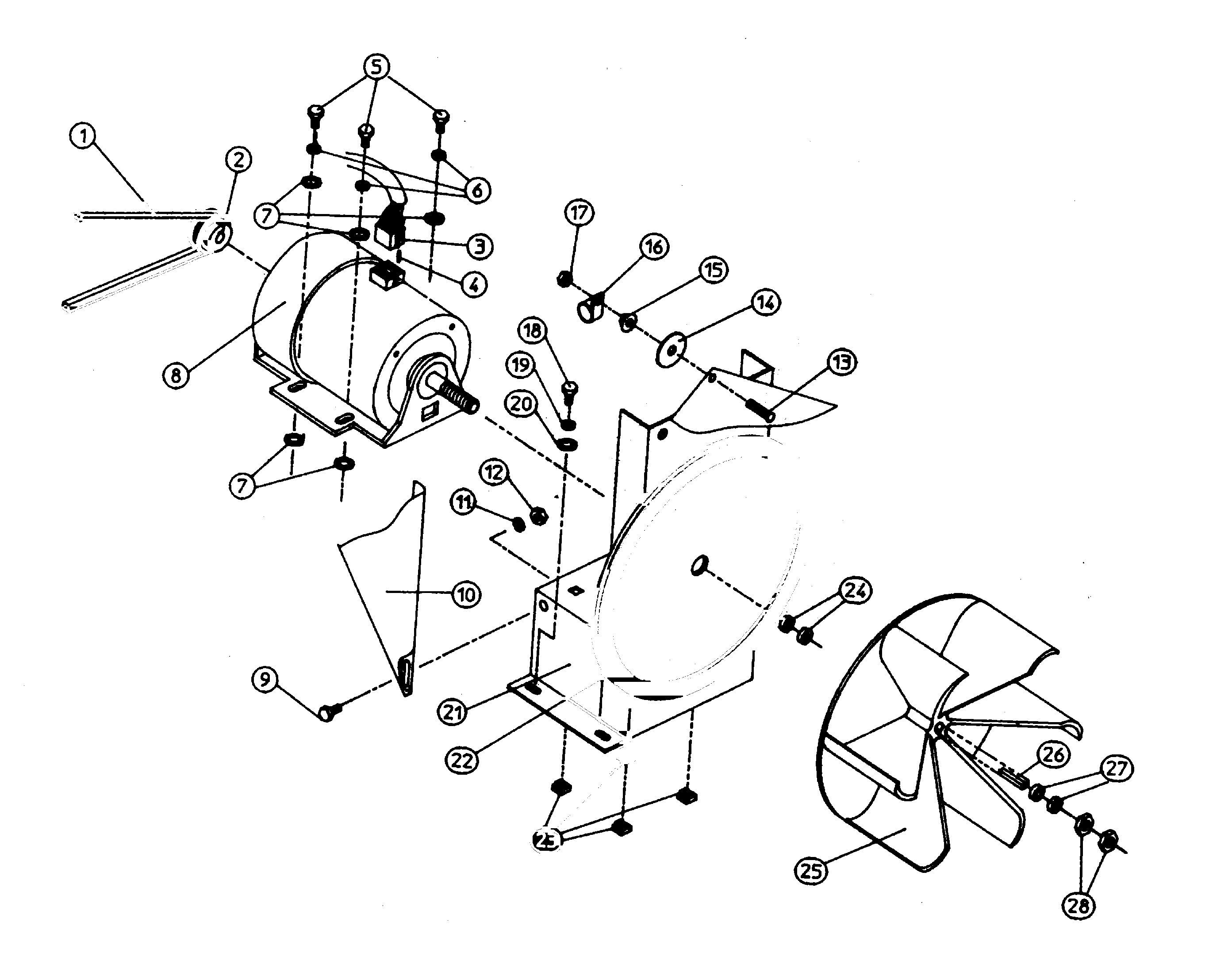

MDG32PC2AW 17 – MOTOR & MOUNT ASSEMBLY
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A100115 |
| 001 | MAY A100144 |
| 002 | MAY A101131 |
| 003 | MAY A137030 |
| 004 | MAY A122701 |
| 004 | MAY A122801 |
| 008 | MAY A100065 |
| 009 | MAY A150111 |
| 010 | MAY A311403 |
| 011 | MAY A153007 |
| 013 | MAY A153525 |
| 014 | MAY A153003 |
| 015 | MAY A152014 |
| 016 | MAY A121490 |
| 017 | MAY A152002 |
| 018 | MAY A150501 |
| 019 | MAY A153002 |
| 020 | MAY A153001 |
| 021 | MAY A803969 |
| 021 | MAY A850019 |
| 022 | MAY A117600 |
| 023 | MAY A154000 |
| 025 | MAY A100604 |
| 026 | MAY A100702 |
| 027 | WASHER, FLAT (1/2``) QUANTITY AS REQUIRED |
| 028 | MAY A152006 |
