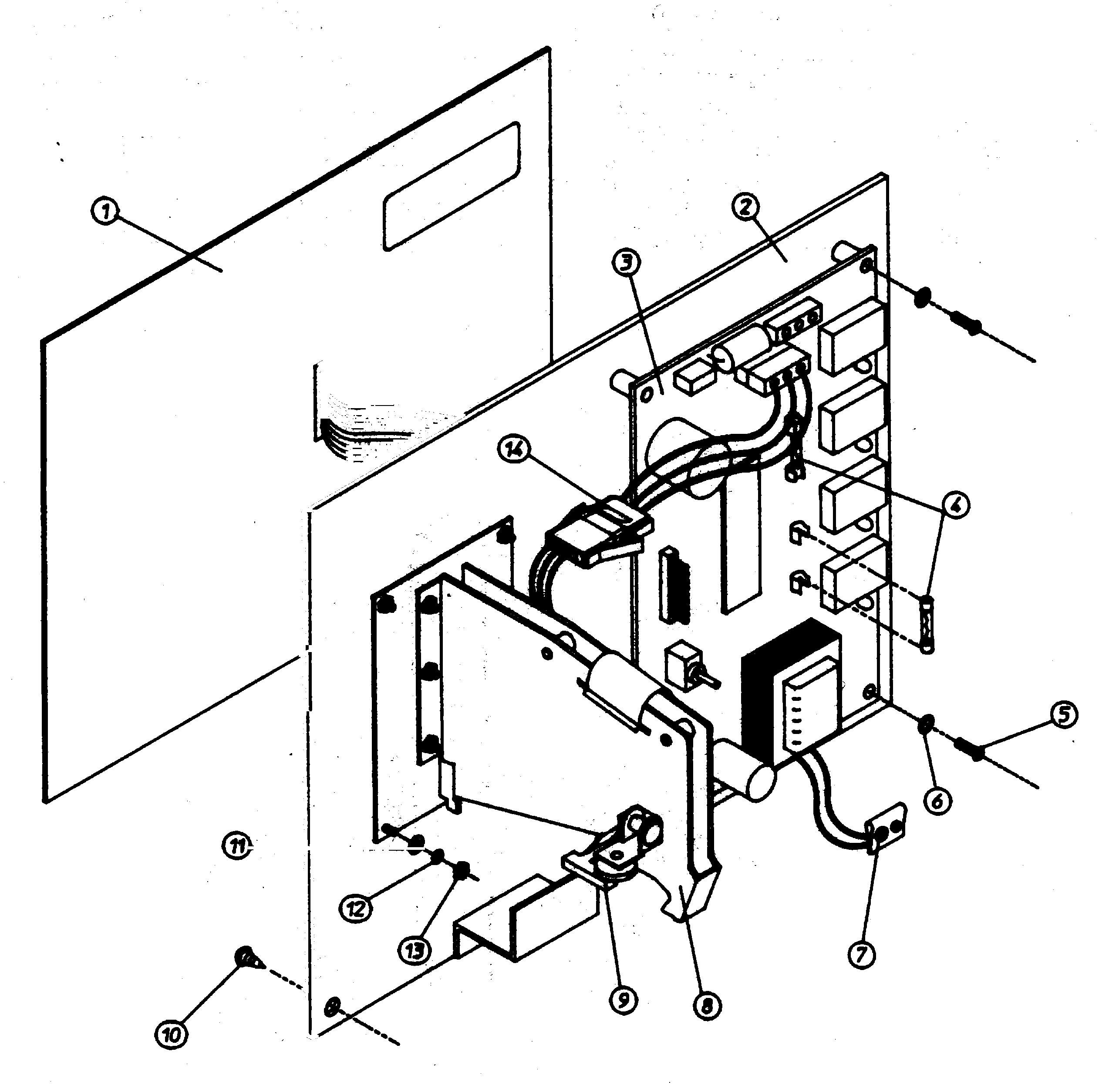

MDG32PC3AL 09 – CONTROL PANEL ASSEMBLY

Written by

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A112540
002	MAY A824007
002	MAY A801266
002	MAY A801231
003	MAY A137240
004	FUSE, 1/8 AMP (SLO BLO)
005	SCREW, PHILL (6-32 X 1/4“)RND
006	MAY A153010
007	HARNESS, CLIP (9V BATTERY)
008	MAY A125150
009	MAY A137056
010	MAY A150301
011	MAY A153046
012	MAY A153045
013	MAY A152016
014	MAY A824867
