MDG32PC3AW 08 – DOOR SWITCH ASSEMBLY
Written by
in

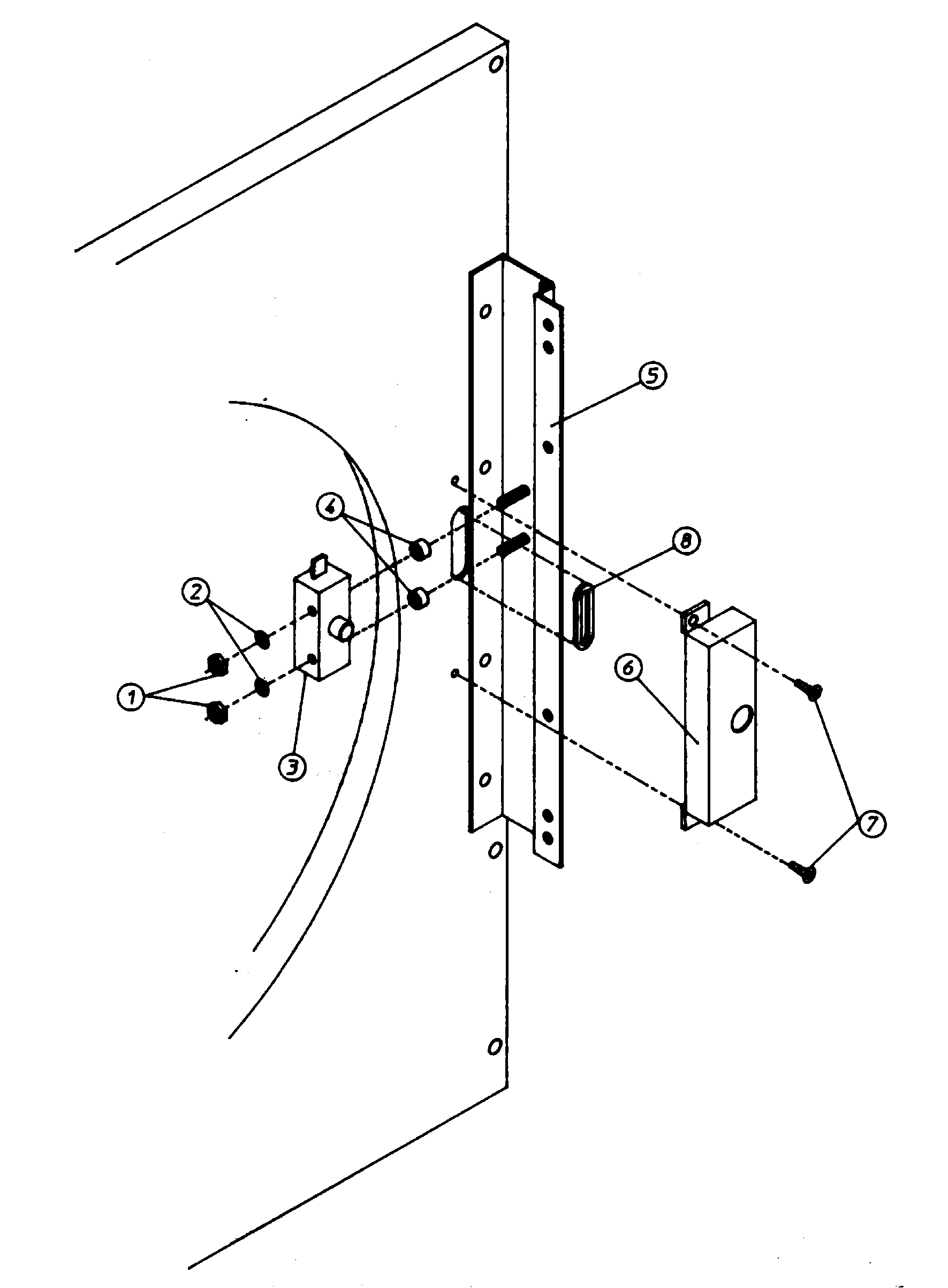

MDG32PC3AW 08 – DOOR SWITCH ASSEMBLY
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A152013 |
| 002 | MAY A153010 |
| 003 | SWITCH, DOOR (SINGLE POLE) |
| 004 | MAY A154281 |
| 005 | MAY A800448 |
| 006 | MAY A313248 |
| 007 | MAY A150201 |
| 008 | GROMMET, RUBBER |
