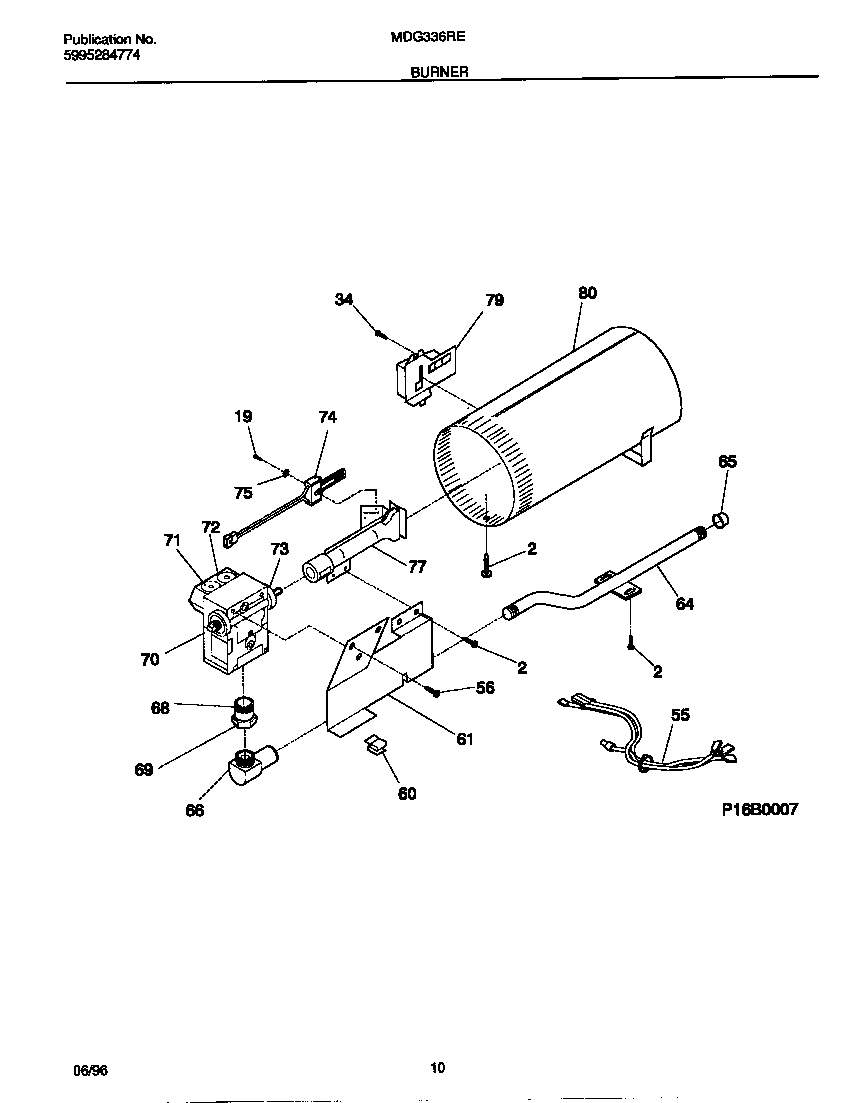

MDG336RED0 06 – BURNER

MDG336RED0 06 – BURNER

Written by

in

MDG336RED0 06 – BURNER

Products

PositionProduct
*63203WCI 131509600
2131168200 Frigidaire Dryer Screw
19131205300 Frigidaire Screw
34131243700 Frigidaire Screw
55HARNESS
56131243800 Frigidaire Screw
60CLIP
61WCI 131418701
64WCI 5303286873
6508015112 Frigidaire CAP
67WCI 131512000
68TAIL PIECE
69NUT-HEX UNION
70DRYER GAS VALVE
715303931775 Frigidaire Dryer Coil Kit
735303207410 Frigidaire Orifice
745303937186 Frigidaire Dryer Flat Igniter Assembly
755300809968 Frigidaire Dishwasher P-1 Washer
77WCI 131553400
795303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80TUBE ASSY BURNER
