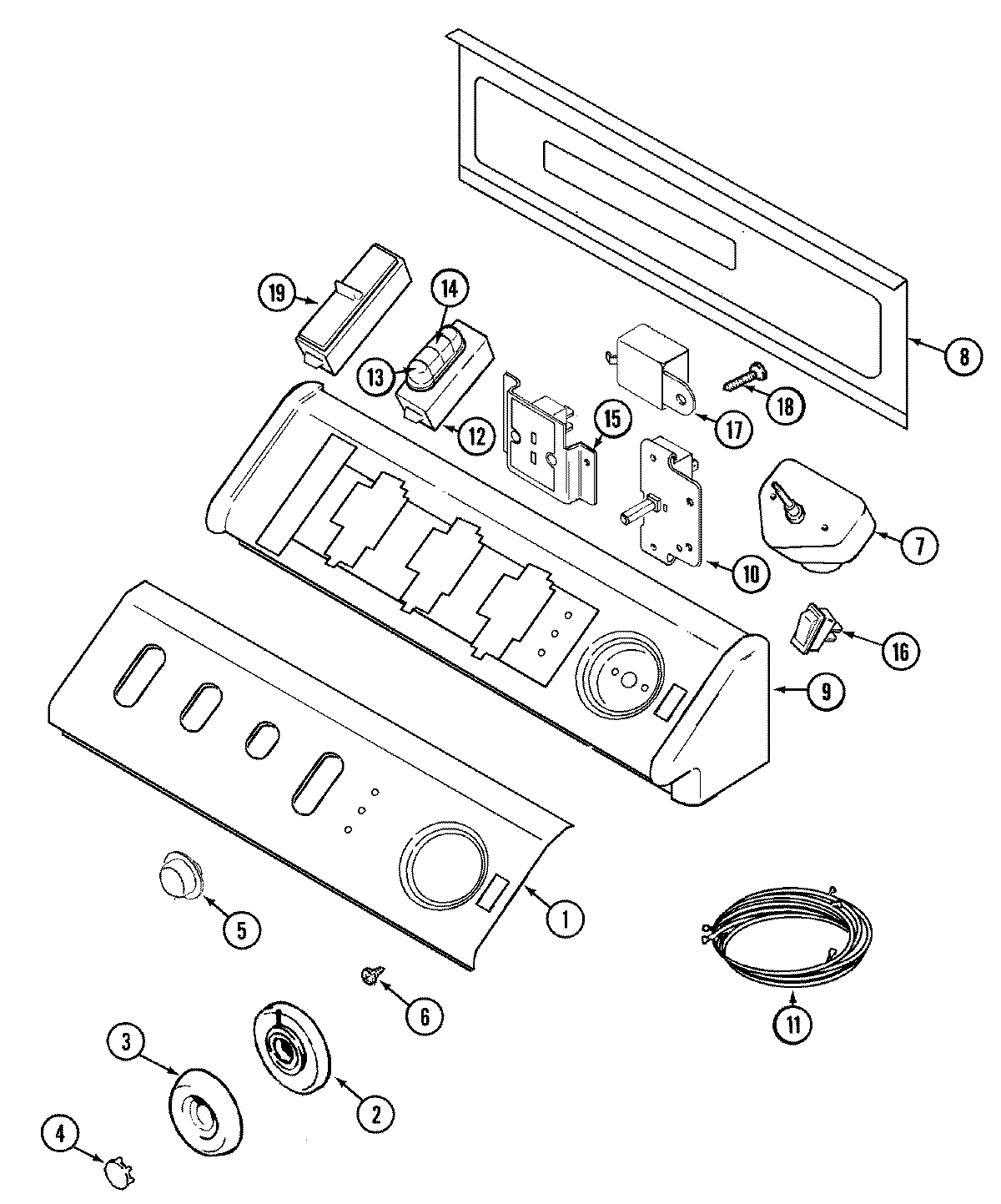

MDG4000AXQ 03 – CONTROL PANEL

Products

Position	Product
1	MAY 33002423
1	MAY Y22002339
2	WP33002346 Whirlpool Dial Knob
3	WP22001659 Whirlpool Timer Knob
4	MAY 33002347
5	MAY 33002435
6	WP90767 Whirlpool Screw
7	WP33001730 Whirlpool Timer
7	WP33002676 Whirlpool Element Timer
8	MAY 216423
8	MAY 22002529
9	MAY 33002327
10	MAY 33002356
11	MAY 33002420
12	MAY 33002415
13	MAY 22002697
14	MAY 22002698
15	MAY 33002400
16	MAY 33002418
17	MAY 33001848
19	WP33001656 Whirlpool Temperature Switch
20	MAY 22001403
20	WP22001948 Whirlpool Indicator Lens
21	MAY 33002426
21	MAY 33002427
