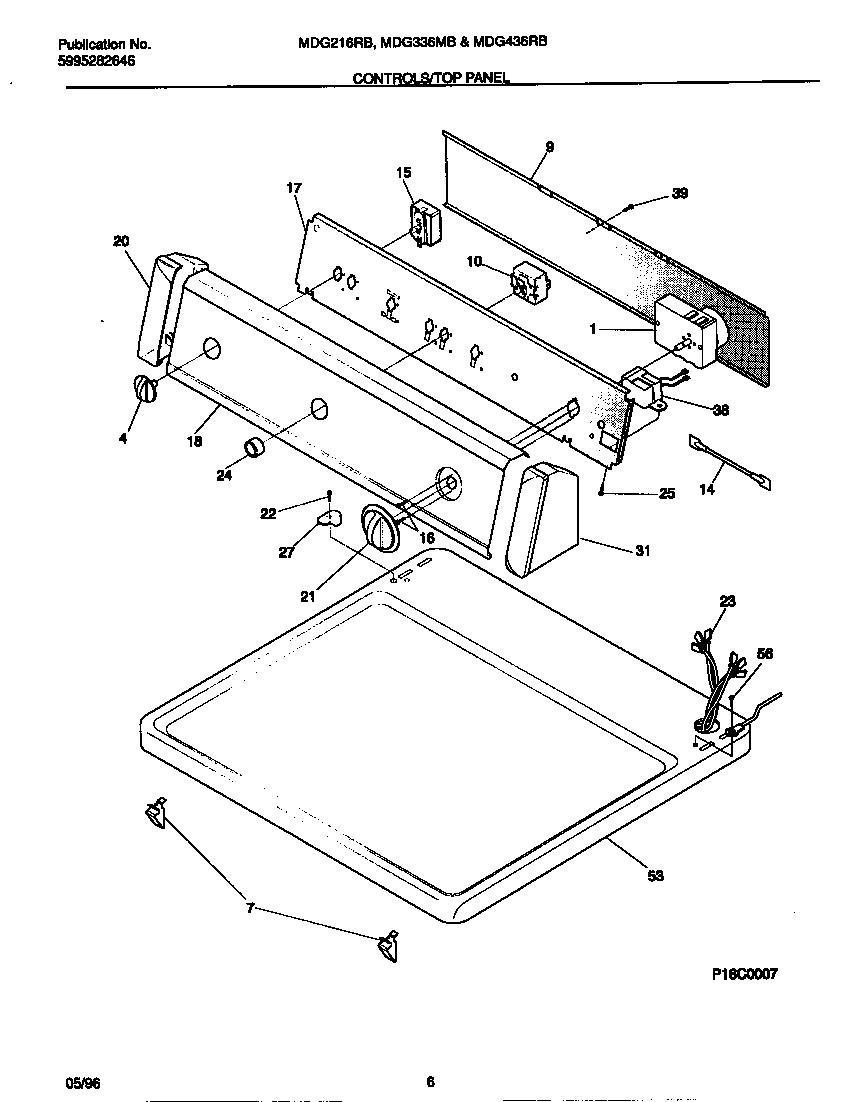

MDG436RBD2 04 – CONTROLS/TOP PANEL

MDG436RBD2 04 – CONTROLS/TOP PANEL

Written by

in

MDG436RBD2 04 – CONTROLS/TOP PANEL

Products

PositionProduct
*849625303303590 Frigidaire Dryer 4.0" Cable Tie
1TIMER
4WCI 131081000
73205821 Frigidaire Clip
9COVER-BACK
10WCI 131048000
15WCI 131288900
16218359202 Frigidaire Refrigerator Screw
17WCI 131297306
18WCI 131290100
20WCI 5303291344
21KNOB-TIMER
22WCI 131266300
23WCI 131569500
24KNOB-START SWITCH, BLACK
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 5303291352
38WCI 5303210285
39131205100 Frigidaire Screw
53WCI 131130404
56131243800 Frigidaire Screw
