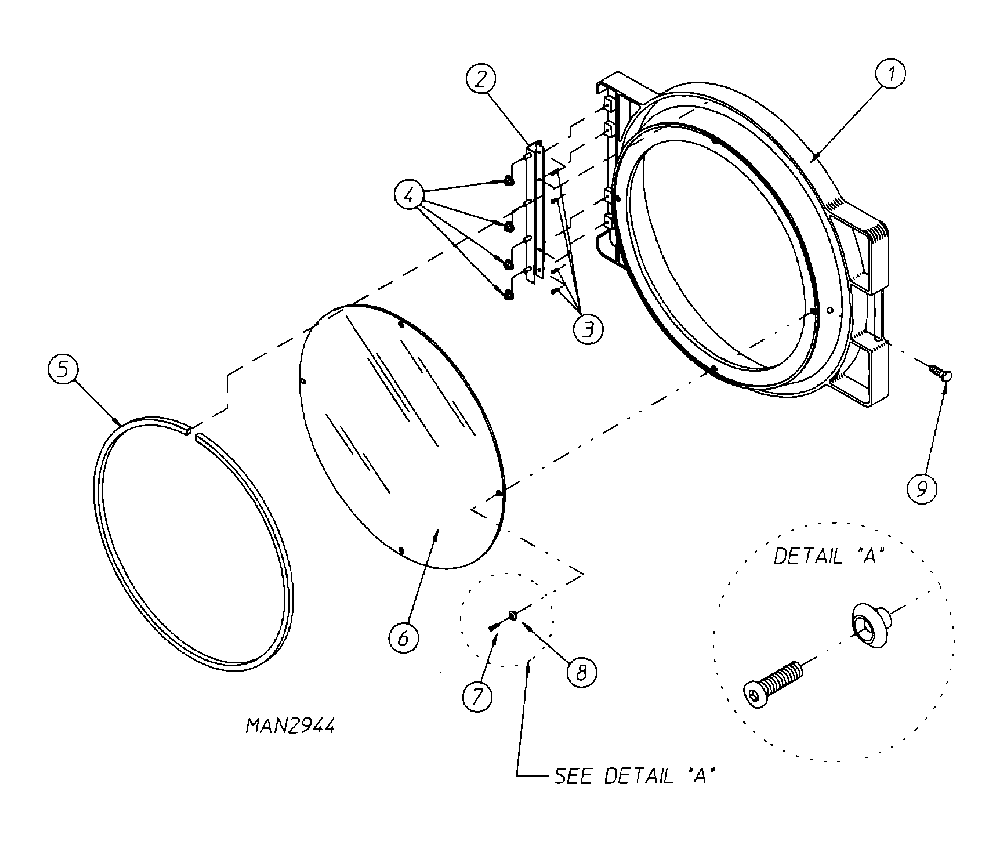

MDG50MNAWW 07 – DOOR ASSEMBLY

Written by

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	DOOR ASSEMBLY COMPLETE (GRAY) (INCL ITEM No.`S 1 & 5 THRU 9)
001	MAY A882963
001	MAY A103062
001	MAY A881422
002	MAY A800448
003	SCREW, CRIMPTITE
004	MAY A152014
005	GASKET, DOOR (69 1/2“)
006	MAY A170730
006	GLASS, DOOR (20-7/16“)
007	MAY A150448
008	MAY A170319
009	MAY A150431
