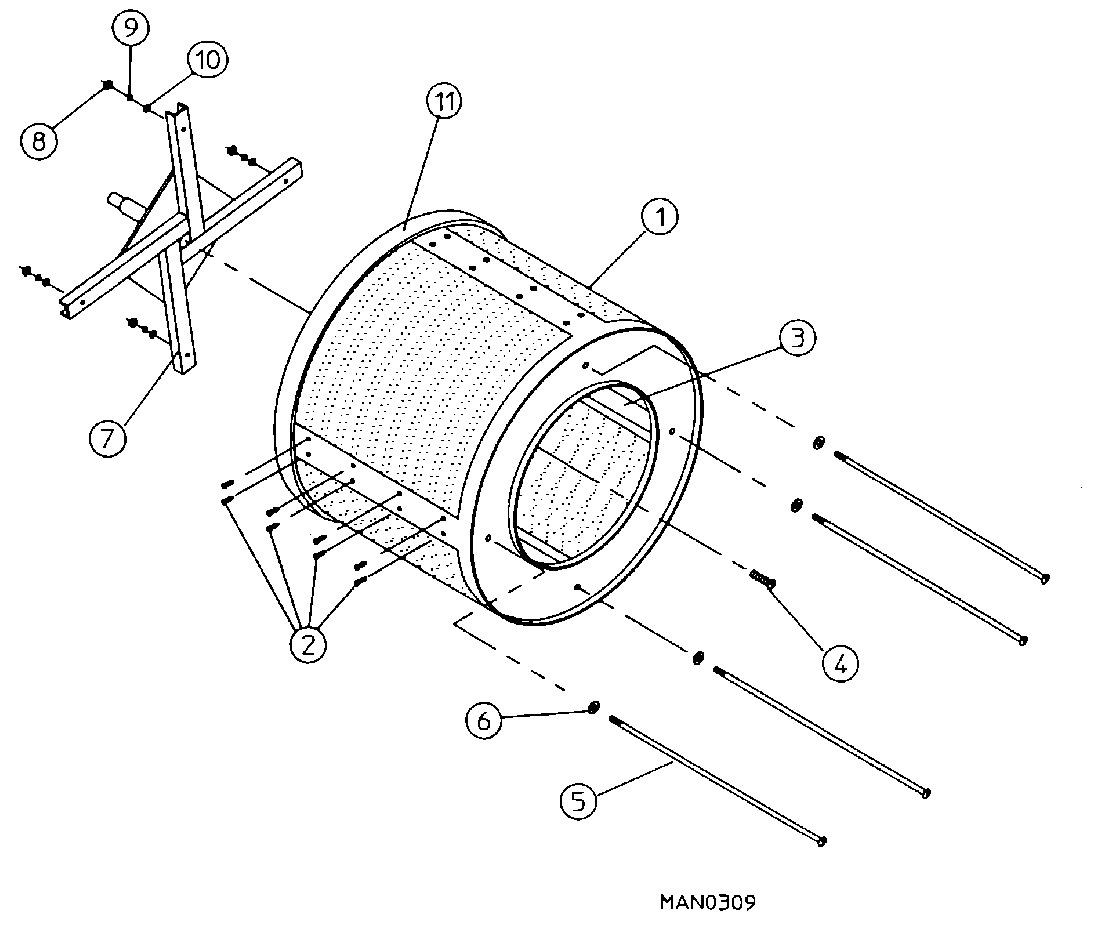

MDG50PN1AL 11 – TUMBLER & SUPPORT ASSEMBLY
Written by
in
MDG50PN1AL 11 – TUMBLER & SUPPORT ASSEMBLY
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A800839 |
| 001 | MAY A800838 |
| 001 | MAY A800837 |
| 002 | SCREW, CRIMPTITE |
| 003 | MAY A301311 |
| 003 | MAY A301302 |
| 004 | MAY A150500 |
| 005 | MAY A100903 |
| 007 | MAY A800616 |
| 007 | MAY A800614 |
| 008 | MAY A152005 |
| 009 | MAY A153005 |
| 010 | MAY A153004 |
| 011 | MAY A116001 |
| 011 | MAY A401010 |
