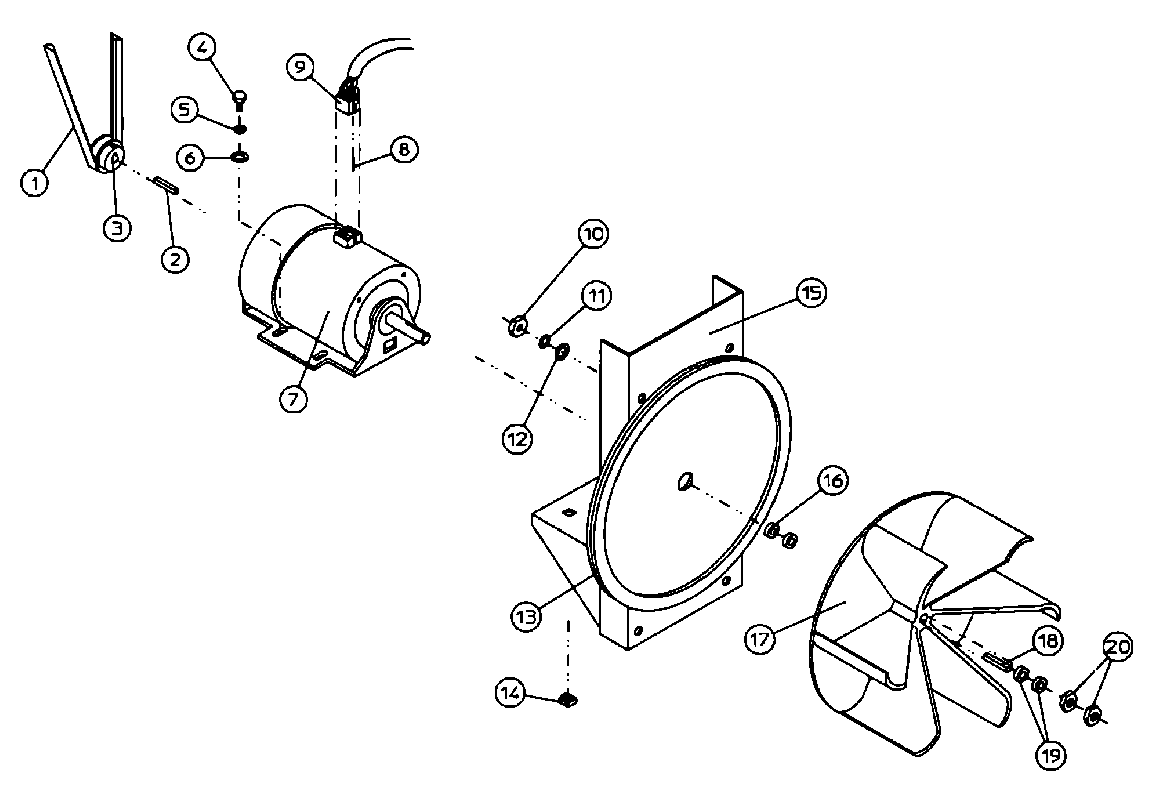

MDG50PN1AL 14 – MOTOR & MOUNT ASSEMBLY (MNAW/PN1A)

Products

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001MAY A100112
002MAY A100701
003MAY A101130
004MAY A150501
0073/4 HP 115V 10 MOTOR W/PLUG 56
007MAY A100007
007MAY A100033
008MAY A122801
008MAY A122701
009MAY A137030
010MAY A152004
011MAY A153002
012MAY A153001
013MAY A117604
014MAY A154000
015MAY A803972
015MAY A803988
015MAY A800905
016MAY A153051
017MAY A100604
018MAY A100714
019WASHER, FLAT (1/2“) QUANTITY AS REQUIRED
020MAY A152006
