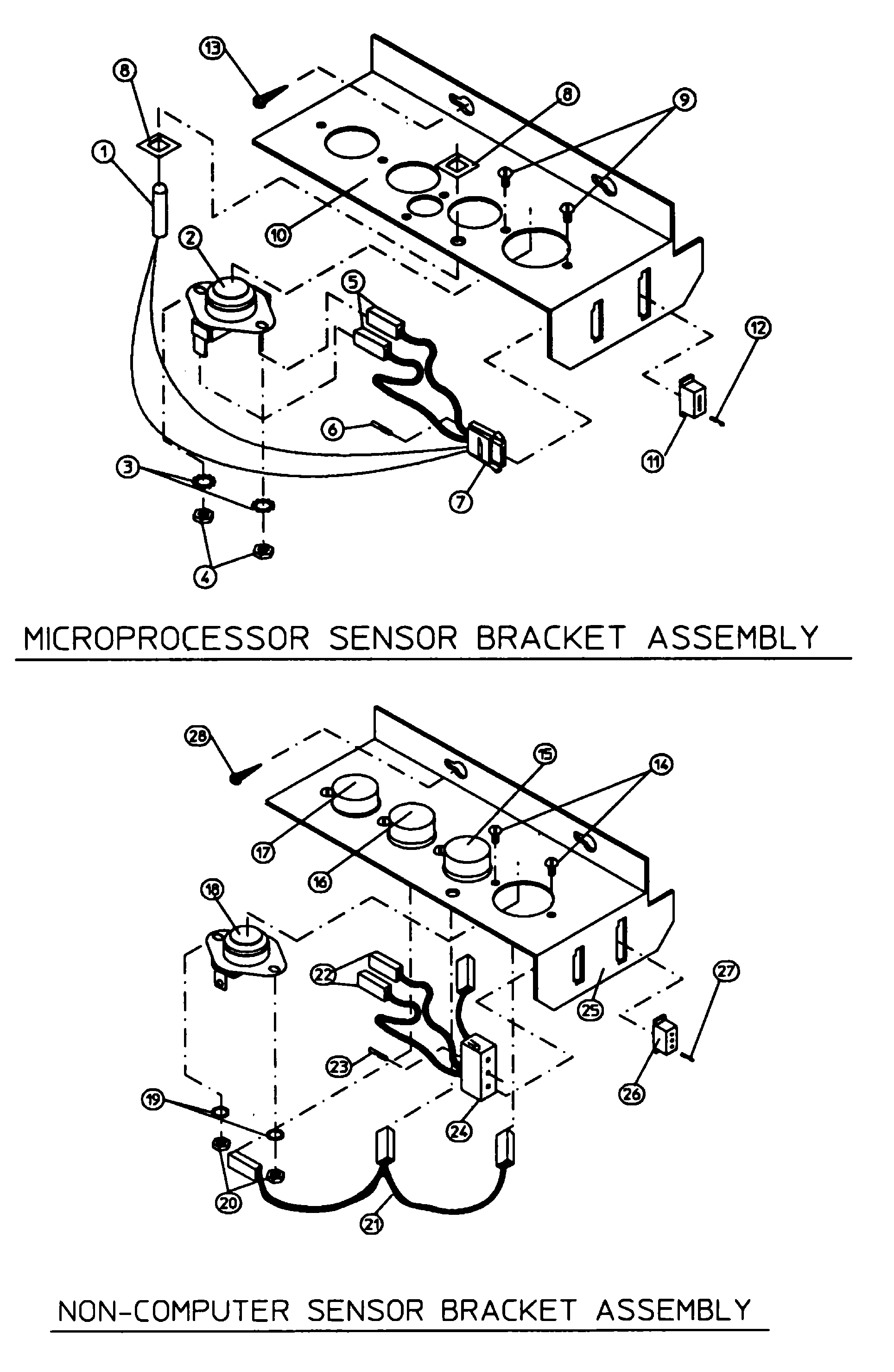

MDG50PN1AW 15 – SENSOR BRACKET ASSEMBLY

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	PROBE ASSY., TEMP. (1/4``)
007	MAY A122801
008	MAY A154007
010	SENSOR BRACKET ASY.
014	SCREW, PHILL (6-32 X 1/4``)RND
015	MAY A130111
016	MAY A130100
017	MAY A130301
018	MAY A130101
019	MAY A153010
020	MAY A152000
021	JUMPER WIRE, SENSOR-4 ONLY
022	MAY A121028
023	MAY A122701
024	MAY A122605
024	MAY A840062
025	MAY A305007
025	SENSOR BRKT ASSY -4 T-STAT (INCLS No.22,23 & 24)
026	MAY A122604
027	MAY A122700
028	MAY A150301
