MDG50PN2VW 01 – CONTROL PANEL ASSEMBLY (PN1A/PN2V)

Products

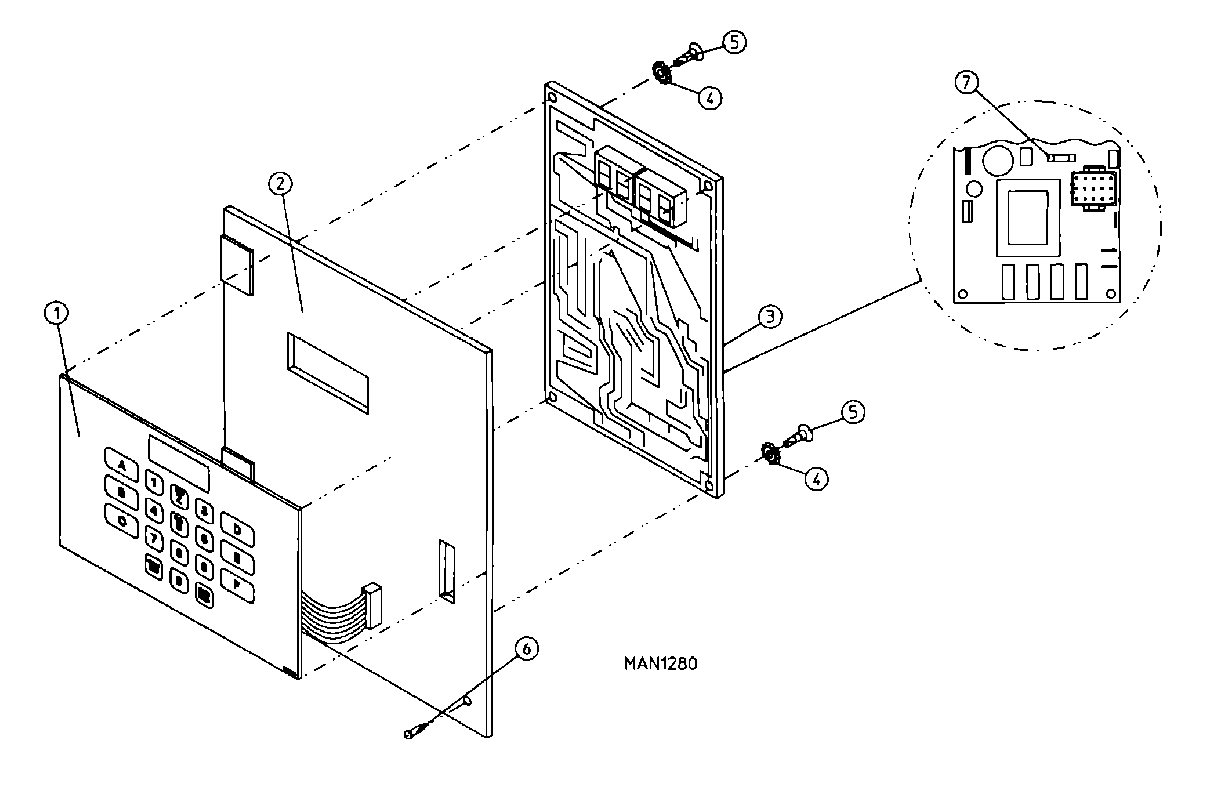

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001MAY A112535
001LABELS, OPL (STICK-ON) (ENGLISH ONLY)
001LABELS, OPL (STICK-ON) (ENGLISH, SPANISH & HEBREW)
002MAY A801207
002PANEL, CONTROL (PHASE 5, MICRO. W/BATTERY
002PANEL, CONTROL (PHASE 5, MICROPROCESSOR)
002MICROPROCESSOR, PHASE 5 (OPL) (NON-REVERSING)
003HARNESS, CLIP (9V BATTERY)
003CONTROLLER (PHASE 5 OPL NON-REVERSING)
003CONTROLLER, REVERSING
004MAY A153010
005SCREW, PHILL (6-32 X 1/4“)RND
006LATCH, SPRING TURN (2-PIECE) (CHECK LABEL ON COMPUTER CHIP
006SCREW, CRIMPTITE
007FUSE, 1/8 AMP (SLO BLO)
