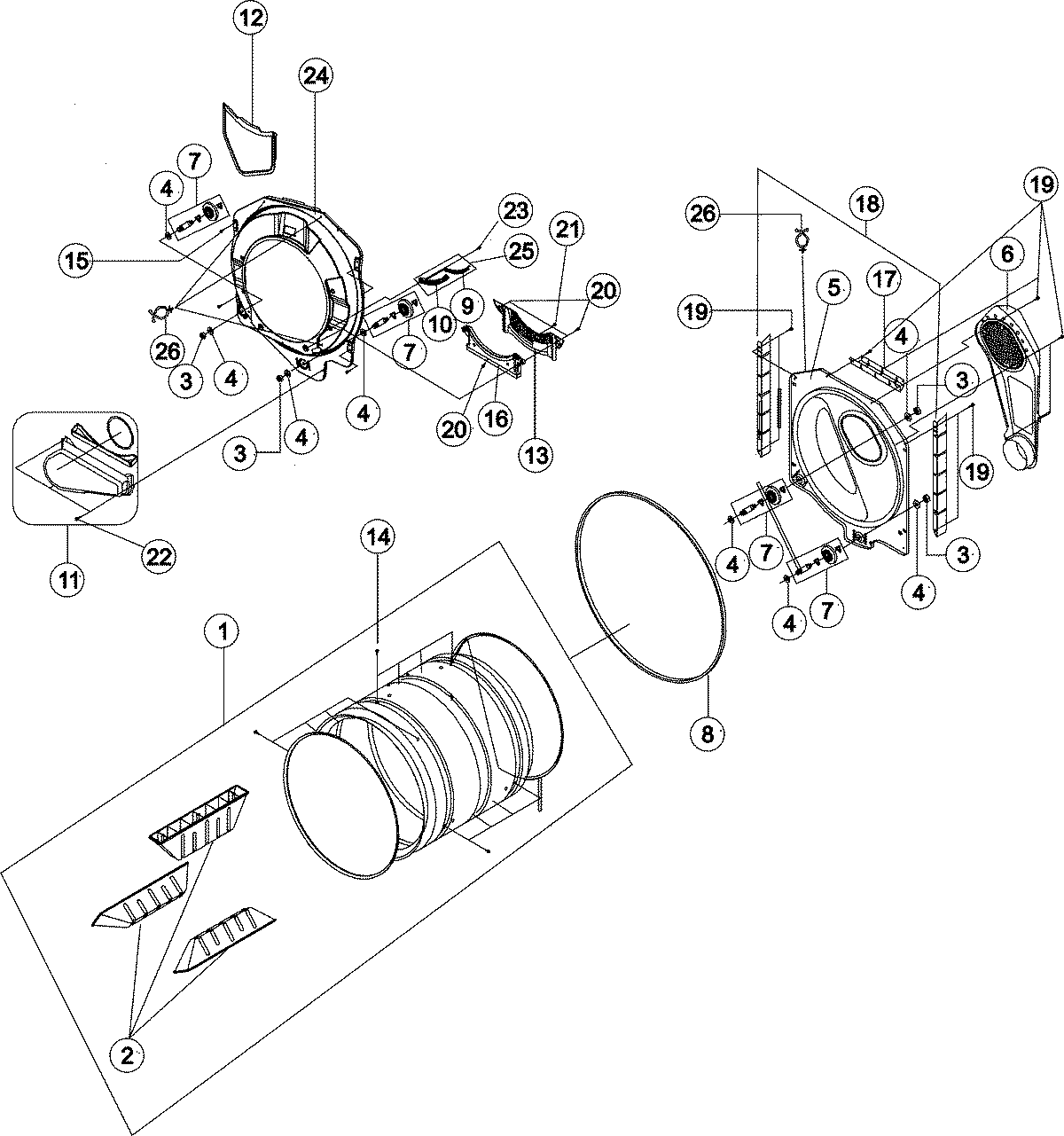

MDG6700AWM 03 – DRUM

Products

Position	Product
1	MAY 35001238
2	Baffle-Drum
3	MAY 35001132
5	MAY 35001239
6	MAY 35001240
6	Air Duct Assembly
7	WPW10177428 Whirlpool Support Roller with Axle
8	WPW10205415 Whirlpool Drum Belt
9	MAY 35001241
10	MAY 35001242
11	MAY 35001140
12	WP35001141 Whirlpool Screen
13	MAY 35001243
14	MAY 6002-001204
15	MAY 34001211
16	MAY 35001144
17	MAY 35001145
18	Channel Bracket, Rear Bulkhead (2)
19	6002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
20	MAY 35001147
22	MAY 35001108
23	MAY 6002-001320
24	Bulkhead, Front
25	Guide-Sensor Assembly
26	HOLDER-WIRE (RETAINER/CLIP)
