MDG6700AWM 04 – DUCT, HEATER, MOTOR

MDG6700AWM 04 – DUCT, HEATER, MOTOR

Written by

in

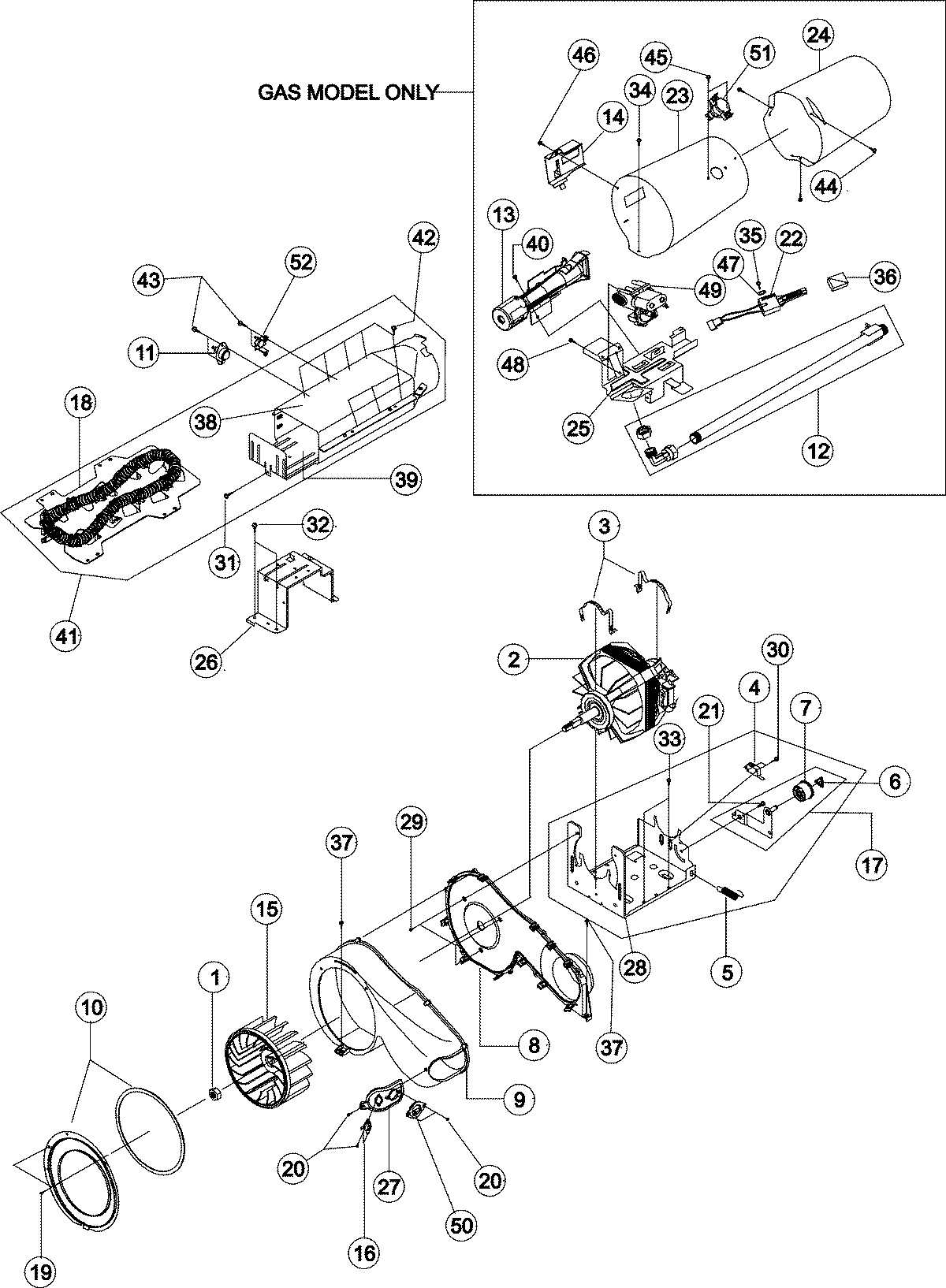

MDG6700AWM 04 – DUCT, HEATER, MOTOR

Products

PositionProduct
1MAY 35001079
2WP35001080 Whirlpool Dryer Motor
3MAY 35001081
4MAY 35001082
5MAY 35001083
5MAY 35001278
6MAY 35001084
7DC93-00634A Samsung Dryer Idler Pulley Assembly
8MAY 35001088
9Housing-Blower Front
10Cover-Plate Assembly
11WP35001092 Whirlpool Dryer High Limit Thermostat
12MAY 35001093
13MAY 35001095
14WP338906 Whirlpool Dryer Gas Sensor
15MAY 35001097
16WP35001087 Whirlpool Thermostat
18WP35001247 Whirlpool Heating Element
19MAY 6002-000213
20Screw-Tapping (4)
21MAY 35001099
22MAY 35001100
23MAY 35001101
24MAY 35001102
25MAY 35001103
26Bracket, Heater-Box
27BRACKET-THERMISTOR
28MAY 35001106
30SCREW-TAPPING
35MAY 35001116
36MAY 35001117
38Box, Heater
39MAY 35001110
40MAY 35001118
41WPW10222771 Whirlpool Heater with Thermostat
436002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
46MAY 35001108
47MAY 6021-001130
48MAY 34001211
49WP33002924 Whirlpool LP Conversion Gas
49CONVERSION KIT (NAT.TO LP)
49WP35001190 Whirlpool Gas Valve
50THERMISTOR
51MAY 35001192
52WP35001193 Whirlpool Thermal Fuse
